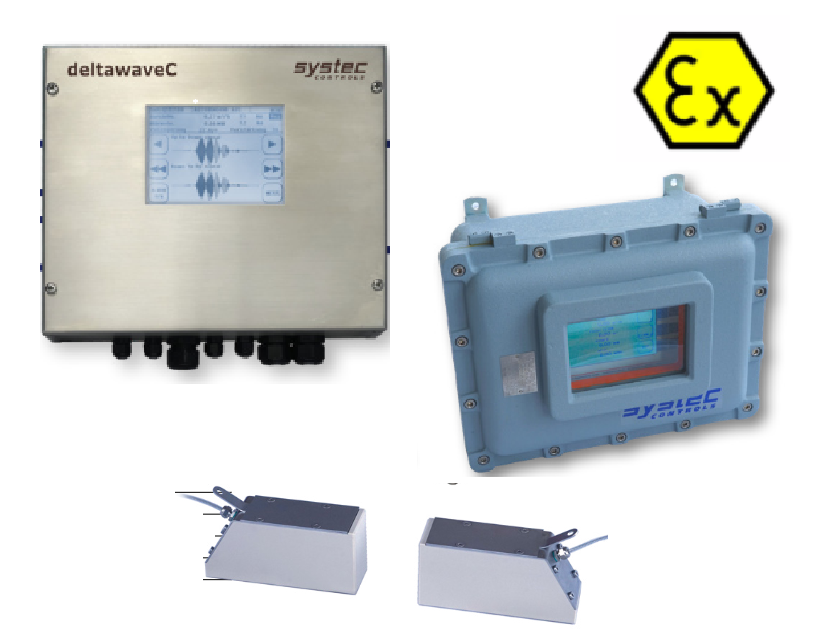

Deltawave C-F clamp on, ex proof

The clamp-on ultrasonic flowmeter deltawaveC-F is the permanently installed twin of the portable clamp-on flowmeter deltawaveC-P. The new, universally applicable clamp-on ultrasonic flowmeter for liquid media in filled pipes works according to the highly accurate ultrasonic time-of-flight method. Special advantage: The ultrasonic transducers are strapped onto the pipe from the outside (clamp-on or buckle-on technology), it is not necessary to cut the pipe, there are no pressure losses. Another advantage of clamp-on ultrasonic flow measurement: because the transducers are not in contact with the medium, the measurement is 100% contamination-free and thus 100% hygienic. This is particularly interesting for quantity measurements of food and pharmaceutical products. And if you have to measure particularly toxic or environmentally harmful liquids: There are no additional sealing surfaces or dead volumes when measuring flow with deltawaveC.

• Suitable for measuring liquids and gases
• No contact with medium, clamp-on measurement up to 380°C
• Clamp-on heat quantity measurement (cold quantity measurement) integrated as standard
• Extremely easy to operate
• Ex zone 1 and zone 2 available
• DN10 to DN8000
• Installed in 5 minutes

High measuring precision with liquid flowmeter deltawaveC

With the deltawaveC-F, the drinking water flow is measured according to the ultrasonic time-of-flight method via clamp-on transducers. This enables precise and very dynamic flow measurement, especially as the measurement process takes place many times – usually 50 to 150 times – per second. Thus, in combination with the extremely accurate signal evaluation, measurement results can be determined very reliably and practically drift-free even in fast-flowing liquids. In doing so, the calmp-on ultrasonic flow meter deltawaveC-F meets or exceeds even the highest requirements for precise flow measurement.

Absolutely hygienic ultrasonic flowmeter

Strict hygiene standards apply to drinking water measurement – and rightly so, because there must be no contamination here. The clamp-on flowmeter deltawaveC fix is the ideal tool here because it masters non-contact flow measurement. Here, the measuring sensors do not come into contact with the drinking water at any time. This eliminates the risk of contamination from the outset. This makes drinking water measurement with the deltawaveC fix 100 percent hygienic.

Clamp-on Ultrasonic Flow Meter: Quick and easy to install and set up

Parameterisation in a very short time

Precise and simple are not contradictory with ultrasonic flowmeter deltawaveC-F. DeltawaveC-F is very easy to handle. The user interface of the large graphical display is easy to master even without training. Installation and parameterisation of the deltawaveC-Fix only take a few minutes. It is not necessary to cut the pipeline; it is sufficient to strap the ultrasonic transducers onto the respective pipeline from the outside (clamp-on). A Quickfix mounting set is included in the scope of delivery for smooth installation. With the help of the Quick-Setup option, all necessary parameters can be set in a few minutes.
Any questions are answered by the online help.

All safe: Clamp-on flow meter deltawaveC-F is approved for use in hazardous areas

Both the transmitter and the deltawaveC sensors are Ex d (pressurised enclosure) approved. You do not have to do without the large display and the familiar simple operating concept of the transmitter. With clamp-on flow meter deltawaveC, you can combine Ex and non-Ex transducers according to your requirements: If, for example, only a small radius around the pipeline is Ex-area, you can place the transmitter without Ex outside the Ex-area and order only the ultrasonic transducers in Ex-design. This saves costs and does not compromise safety.

High temperature converter up to 380°C for the clamp-on Ultrasonic Flow Meter

The new, directly-applied high-temperature converters withstand temperatures up to 380°C. And because the converters do not require spacer plates (hockey sticks), installation of the clamp-on ultrasonic flow measurement is much easier and the signals are significantly more stable and better than with conventional high-temperature converters.

This means you can now use deltawaveC on mediums such as tar, thermal oil, boiler feed water and various hydrocarbons in the refinery.
