Temperature Calibration

The Dry Block Calibrators economic line from Presys perform functions that would require three different types: a dry block, standard thermometer and a calibrator for RTDs, TCs, mA, mV, ohms and thermoswitches for a temperature up to 1200°C.

Features:

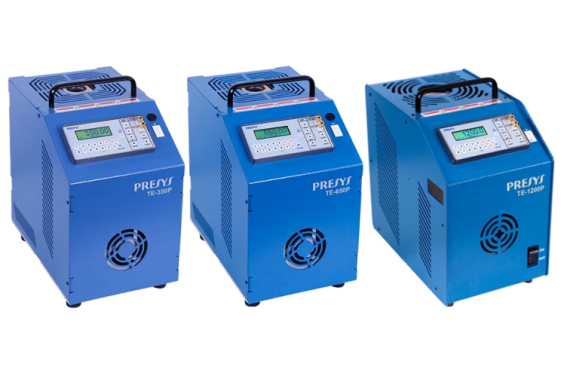

• The TE-350P, TE-650P and TE-1200P Dry Block Calibrators perform functions that would require three different types: a dry block, standard thermometer and a calibrator for RTDs, TCs, mA, mV, ohms and thermoswitches.
• Model TE-1200P generates temperature from 50 °C up to 1200 °C. The TE-350P and TE-650P models generate from ambient temperature to 350 °C and 650 °C respectively.
• Stability of ± 0.03 °C for the TE-350P and TE-650P and ±0.1 °C for the TE-1200P model.
• Internal regulated 24 Vdc power supply and mA input for 2-wire transmitters.
• Completely automatic calibration with or without the use of a computer (auto-cycling).
• Documenting capabilities: connection with computer and ISOPLAN® calibration software.
• The TE-1200P allows the use as a black body target for infrared thermometers.

• PRT reference thermometer, resolution of 0.001 °C.
• Replace precision glass thermometer.
• Fully electronic, without mechanical parts.
• Accepts PRT sensors or standard thermocouples.
• Portable and compact (rechargeable battery, charger and carrying case included).
• It has internal memory and serial communication port.
• Accepts Callendar-Van Dusen, IPTS-68 and ITS-90 coefficients.

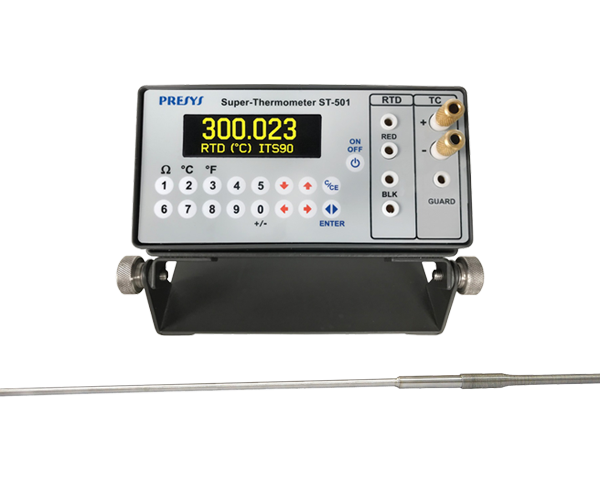

The super thermometer ST-501 main purpose is to measure temperature with high accuracy. It uses platinum resistance thermometers sensors and it also accepts standard thermocouples. The digital electronic indicator can be offered complete including the temperature sensor and calibration certificate of the pair. The ST-501 has internal algorithms to calculate the temperature value according to Callendar-Van Dusen (CVD) and ITS-90 among other international temperature tables. For customers that already have one or several RTD’s or PRT’s sensors with quality enough for being used as standards, it is only necessary to enter its respective coefficients. And for those uncalibrated probes, it is possible to use the standard linearization curves for RTDs and thermocouples.

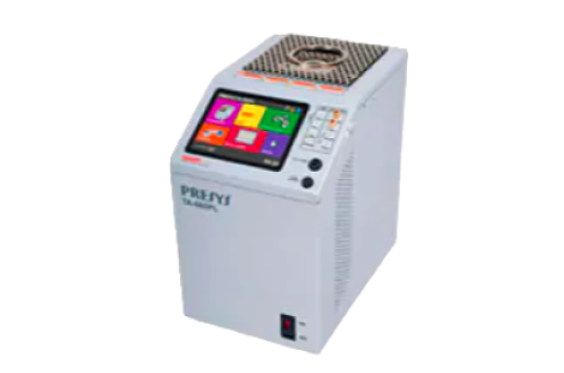

the Presys TA series smart dryblock calibrators combine a dry block, standard thermometer, and electronic calibrator, for a wide temperature range from -60 °C to 1200 °C, featuring built-in HART communication, touchscreen interfaces, and automated reporting.
