A turbine flow meter measures volume. The flowing liquid or gas spins a free rotor at a speed that follows the flow velocity. A pickup or register counts the turns. This category holds our own SSEA water, liquid and gas turbine meters. Beside them sits the Bopp & Reuther RQ, approved by Germany’s PTB for custody transfer under the EU Measuring Instruments Directive.

Which turbine meter for which medium

Figures come from each product page, and for the RQ from Bopp & Reuther’s data sheet. Where a page gives no figure, ask us for your size.

Meter Medium Stated figures Special feature
SSEA-WMIII Water in municipal and industrial systems See product page Low-friction impeller, sealed dry register against moisture and condensation
SSEA-TFLIII Low-viscosity liquids Repeatability up to ±0.05% Stainless steel housing, low-inertia rotor, compact inline body for skids and injection manifolds
SSEA-TFGIII Clean industrial gases, natural gas See product page Signal to a totaliser for accumulated volume
Bopp & Reuther RQ Liquids of low and medium viscosity: thin crude and mineral oils, acids, alkalis, solvents, water, liquefied gases DN15 to DN300; up to 2,400 m³/h; PN6 to PN320; ±0.3% over a 1:10 range; repeatability ±0.02% PTB approval under MID; high and low temperature version from -196 °C to +250 °C

How to choose a turbine flow meter

  • Viscosity: the RQ’s accuracy figures apply to liquids of 0.2 to 6 mPa·s, and its limit is 50 mPa·s. For thicker liquids, look at a positive displacement meter.
  • Range: the RQ holds ±0.3% over a 1:10 range and ±1% over 1:30. Size it so the normal flow sits inside the 1:10 band.
  • Straight pipe: Bopp & Reuther specifies an inlet section of 10 x DN (12 x DN for DN15 and DN25) and an outlet section of 5 x DN. The inlet section follows API MPMS.
  • Gas volume: gas volume changes with pressure and temperature. For standard volume, the TFGIII may need both measured, with a flow computer or compensation function.
  • Repeatability is not accuracy: the TFLIII’s ±0.05% is repeatability; confirm the accuracy for the selected size and calibration.
  • Billing and custody transfer: choose the RQ, with its PTB approval and OIML R117 test report.

Service in Shah Alam

We offer flow calibration for water and oil with our calibration flow rig. Our trained technical staff also calibrate flow instruments in-house and on site. We can verify an installed meter with a portable ultrasonic clamp-on device, without cutting the pipe or stopping the process.

Tell us the medium, viscosity, flow range, pressure and line size, and we will match a turbine flow meter. Send an enquiry. Other meter types are on the flow meter page.

Showing all 4 results

SSEA-TFGIII Gas Turbine Flow Meter

In stock

SKU: SSEA TFIII
The SSEA-TFGIII Gas Turbine Flow Meter for industrial gas flow measurement and consumption monitoring is designed to measure gas flow in compatible industrial pipeline systems. It uses a rotating turbine rotor to convert gas movement into a measurable signal. As a result, the meter supports gas consumption monitoring, flow measurement, and industrial process management. Gas turbine flow meters are commonly used for clean gases in applications such as natural gas distribution and industrial gas supply. Moreover, a suitable electronic transmitter can process the turbine signal to calculate flow rate and accumulated gas volume. Before selecting the SSEA-TFGIII, however, users should confirm the manufacturer's specifications for gas type, pressure, temperature, and flow range.

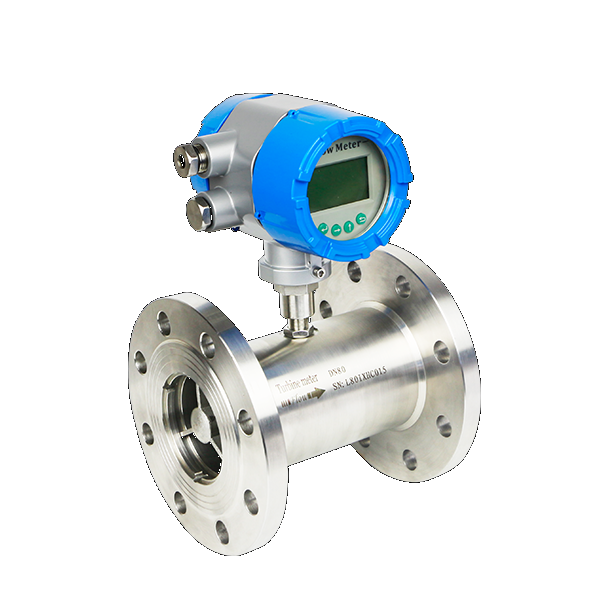

SSEA-TFLIII Liquid Turbine Flow Meter

In stock

SKU: SSEA TFL III
The Schmierer SEA SSEA TFL III Liquid Turbine Flow Meter is designed to measure the flow rate and total volume of low-viscosity liquids in industrial pipelines. It uses a rotating turbine rotor to convert fluid movement into a measurable signal. As a result, the meter supports fast-response flow monitoring and repeatable liquid measurement. The SSEA TFL III features a durable stainless steel housing and a low-inertia rotor. Moreover, its compact inline design helps simplify integration into industrial piping systems, including process skids and chemical injection manifolds. Therefore, it is worth considering for applications that require responsive flow measurement and dependable batch monitoring.

SSEA-WMIII Water Turbine Flow Meter

In stock

SKU: SSEA WM III
The Schmierer SEA Water Turbine Flow Meter SSEAWMIII provides volumetric flow measurement for water distribution and industrial water systems. It uses the energy of flowing water to rotate an internal turbine or impeller. As a result, the meter measures the volume of water passing through the pipeline. Designed for municipal and industrial applications, the SSEAWMIII combines a robust measuring mechanism with a sealed register. Moreover, its low-friction impeller helps the meter respond to water flow. Therefore, it is a practical option for suitable water monitoring and distribution systems.

Turbine Meter RQ

In stock

SKU: RQ UST
The Bopp & Reuther RQ Turbine Meter series provides exceptional high-accuracy flow and volume measurement for low-viscosity liquids. Engineered to maintain structural integrity under extreme pressures up to PN320 and vast temperature spreads, it delivers low pressure loss and long-term calibration stability for industrial process lines and custody transfer applications.
  • Custody Transfer Approvals: Formally certified by the Physikalisch-Technische Bundesanstalt (PTB) and compliant with MID 2014/32/EU regulations for weights and measures fiscal auditing.
  • Extreme Resilience: Superior metal alloys allow the system to operate safely inside cryogenic loops (-196°C) or highly pressurized pipelines (up to 320 bar).
  • Minimal Pressure Drop: The hydrodynamically optimized axial turbine introduces very low resistance to the process stream, optimizing pumping costs across high-volume lines.
  • Smart Data Communication: Easily paired with modern electronics to supply native HART®, Modbus RTU, or 4-20mA loop diagnostics alongside raw high-frequency pulses.
