HSPV

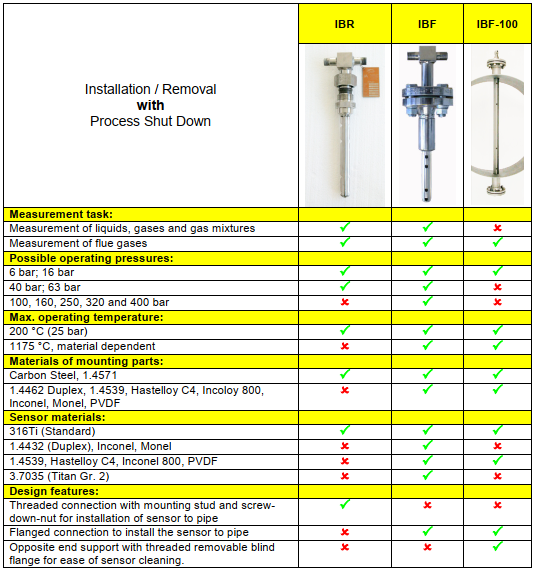

Itabar Pitot Tube flue gas
The ITABAR flow sensor IBF 100 series with an end support standard and an optional air purge unit measures the volumetric flow of flue gases with a pipe diameter up to 12 m and a max. temperature of 1175°C.
5
People watching this product now!
Related products
Itabar Pitot Tube Steam Flow
In stock
SKU:
Itabar ibrd-ibfd-ftmd-fthd
The ITABAR Steam Sensors are designed to measure saturated and superheated steam in all areas of power generation and industrial and process technologies.
Flowsensors for fixed installation:
IBRF series with threaded connection
IBFD series with flanged connection
IBFD HT series with flanged connection for superheated steam
IBFD HTG series with complete welded construction for superheated steam
Flotap Sensors for installation under pressure:
FTMD series with threaded connection
FTHD series with flanged connection and guided rod spindle
download pdf datasheet
Thermal Gasflow Meter
In stock
SKU:
Thermal Flow TA
Fixed and portable consumption measurement in compressed air, nitrogen, natural gas, methane, helium, argon, carbon dioxide, hydrogen, SF6; measuring laminar flow, burner supply air, leakage flows; monitoring safety-related installations, also in aeronautical applications.
- for use in air, compressed air, nitrogen, natural gas, methane, deposit gas, argon, helium, propane, butane, CO2, SF6
- probe for pipeline installation from Di 25 mm, measuring tube from Di 8 mm
- measurement of gas mass flow
- standard flow velocity 0.08 m/s to 200 m/s, volume flow up to 0.04 m3/h
- time constant of under 1 s
- for applications in Ex areas
- M-Bus, WLAN
Ultrasonic portable Clamp-On Flow Meter
In stock
SKU:
SSEA UFP1.0
The Schmierer SEA UFP 1.0 portable clamp-on ultrasonic flowmeter is the ideal flow measurement tool for short or long-term monitoring of several flow points, data logging and verification of buit-in flowmeters.
The transducers are easily set up and can be used for pipe sizes from DN 25 to 5000. The ergonomically designed handheld transmitter comes with a metal protection case against corrosion and a backlit color digital display. The recharchable battery lasts for 12 hours of continuous operation
download pdf datasheet
VA Flowmeter RA60/FA60 protective steel tube
In stock
SKU:
RA60/FA60
VA Flow Meter with protective steel tube and borosilicate measuring cone
The measuring units RA 60 and FA 60 are based on the variable area float principle.
In pipelines the RA 60 is installed by means of pipe unions and the FA 60 is mounted between flanges. The borosilicate glass measuring cone is located inside a protective steel tube with an inspection window.
VA flow meters RA 60 and FA 60 are most suitable for the flow measurement of transparent fluids and gases. Each unit is customized with a scale specific for the medium to be measured. RA 60 and FA 60 are used e.g. in plant and process engineering.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors.
download pdf datasheet
VA Flowmeter RA65/FA65 protective steel tube
In stock
SKU:
RA65/FA65
VA Flow Meter with protective steel tube and borosilicate measuring cone
The measuring units RA 65 and FA 65 are based on the variable area float principle.
In pipelines the RA 65 is installed by means of pipe unions and the FA 65 is mounted between flanges. The borosilicate glass measuring cone is located inside a protection steel tube with an inspection window.
VA flow meters RA 65 and FA 65 are most suitable for the flow measurement of transparent fluids and gases. Each unit is customized with a scale specific for the medium to be measured. RA 65 and FA 65 are used e.g. in plant and process engineering.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors. By installing an linear displacement sensor an output signal can be generated which is proportional to the height setting of the flow meter.
download pdf datasheet
VA Flowmeter RA77/FA77 plastic tube – glass cone
In stock
SKU:
RA77/FA77
VA Flowmeter with plastic armature and borosilicate glass measuring cone
Measuring units RA 77 and FA 77 are based on the variable area float principle.
The flow meter consist of a PVC armature with a measuring cone made of borosilicate glass. With these design features the RA 77 / FA 77 devices combine the advantages of the classical VA flow meters with those of pure plastic measuring devices: Cost-effective, resistant against almost all aggressive media, as well as a high accuracy of the measuring glass, which can be calibrated to suit any requirement. Especially with water and aggressive media this design has proven itself. Therefore the RA 77 / FA 77 are frequently used in the chemical industry and in water treatment plants.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors.
download pdf datasheet
VA Flowmeter SGM PP/PVC
In stock
SKU:
SGM VA PP/PVC
The SGM PP/PVC VA Flow meter is a cost effective fully plastic Version - for chemical applications with highly acidic media, e.g. hydrochloric acid. Since the vertical position of the float is transmitted magnetically to a dial gauge, the SGM, as opposed to standard type variable area flow meters with a glass tube, is also suitable for measuring the flow of opaque media. Each device is individually calibrated to meet customer specifics and fitted with a medium specific scale.
download pdf datasheet
Vane Gasflow Anemometer Meter insertion type
In stock
SKU:
Vane Flow insertion FA
Flow rate and flow velocity in pipes and ducts, measuring flow profiles, aerodynamic research, measuring laminar flow, also at high gas temperatures, landfill gas, exhaust gas, flow rate and flow velocity in flowing waters.
download pdf datasheet
