HSPV
Itabar Pitot Tube Steam Flow

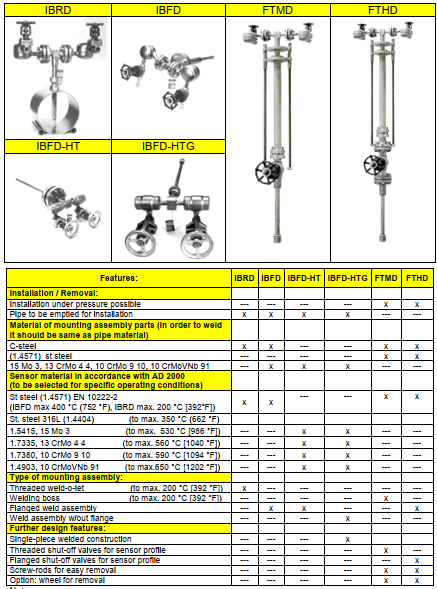

The ITABAR Steam Sensors are designed to measure saturated and superheated steam in all areas of power generation and industrial and process technologies.
Flowsensors for fixed installation:
IBRF series with threaded connection
IBFD series with flanged connection
IBFD HT series with flanged connection for superheated steam
IBFD HTG series with complete welded construction for superheated steam
Flotap Sensors for installation under pressure:
FTMD series with threaded connection
FTHD series with flanged connection and guided rod spindle
6
People watching this product now!
Related products
Massflow Sensor RHM015 small size 0.0015 – 0.6 kg/min
In stock
SKU:
RHM015
The RHM015 is perfect for extremely low flow applications where stability and accuracy are a must. With an application range starting at a few grams a minute, the RHM015L fits R&D and small pilot requirements.
PDF datasheet
Massflow Sensor RHM02 small size 0.02 – 2 kg/min
In stock
SKU:
RHM02
The RHM02 is available with a wide selection of wetted materials and the highest pressure and temperature ratings in the market. It is suitable for all low flow applications where high accuracy is a must.
PDF datasheet
Massflow Sensor RHM03 small size 0.038 – 5 kg/min
In stock
SKU:
RHM03
The RHM03 is available with a wide selection of wetted materials and the highest pressure and temperature ratings in the market. It is suitable for all low flow applications where high accuracy is a must.
PDF datasheet
Massflow Sensor RHM04 small size 0.05 – 10 kg/min
In stock
SKU:
RHM04
The RHM04 is a fast response solution for batching, dispensing and filling applications. Very high pressure ratings allow deployment in processes where Coriolis meter use has not been possible in the past.
PDF datasheet
Massflow Sensor RHM15 middle size 1 – 200 kg/min
In stock
SKU:
RHM15
The RHM15 is an all-purpose meter suitable for liquid processing plants. A wide application flow range capability allows for commonality of installation across numerous lines – a real benefit to owners and operators.
PDF datasheet
Ultrasonic portable Clamp-On Flow Meter
In stock
SKU:
SSEA UFP1.0
The Schmierer SEA UFP 1.0 portable clamp-on ultrasonic flowmeter is the ideal flow measurement tool for short or long-term monitoring of several flow points, data logging and verification of buit-in flowmeters.
The transducers are easily set up and can be used for pipe sizes from DN 25 to 5000. The ergonomically designed handheld transmitter comes with a metal protection case against corrosion and a backlit color digital display. The recharchable battery lasts for 12 hours of continuous operation
download pdf datasheet
VA Flowmeter RA77/FA77 plastic tube – glass cone
In stock
SKU:
RA77/FA77
VA Flowmeter with plastic armature and borosilicate glass measuring cone
Measuring units RA 77 and FA 77 are based on the variable area float principle.
The flow meter consist of a PVC armature with a measuring cone made of borosilicate glass. With these design features the RA 77 / FA 77 devices combine the advantages of the classical VA flow meters with those of pure plastic measuring devices: Cost-effective, resistant against almost all aggressive media, as well as a high accuracy of the measuring glass, which can be calibrated to suit any requirement. Especially with water and aggressive media this design has proven itself. Therefore the RA 77 / FA 77 are frequently used in the chemical industry and in water treatment plants.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors.
download pdf datasheet
VA Flowmeter RA87/FA87 stainless steel tube
In stock
SKU:
RA87/FA87
VA Flowmeter with armature completely made of stainless steel
Measuring units RA 87 and FA 87 are based on the variable area float principle.
In pipelines the RA 87 is installed by means of pipe unions and the FA 87 is mounted between flanges. The borosilicate glass measuring cone is located inside a protective stainless steel tube with an inspection window. All parts in contact with the measured medium are made of stainless steel 1.4571.
VA flow meters RA 87 and FA 87 are most suitable for the flow measurement of transparent liquids and gases. Each unit is customized with a scale specific for the medium to be measured. RA 87 and FA 87 are mainly used in the chemical industry, in water treatment plants, in the food industry, and in other plant engineering applications.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors. By installing an linear displacement sensor an output signal can be generated which is proportional to the height setting of the flow meter.
download pdf datasheet
