HSPV

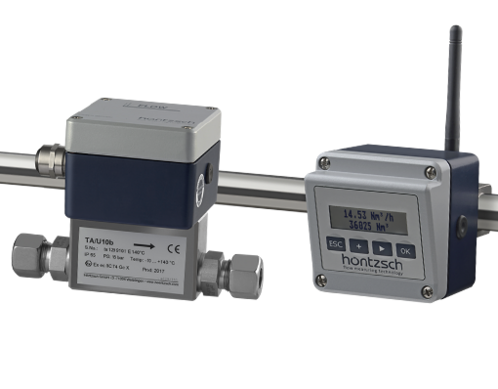

Thermal Gasflow Meter
Fixed and portable consumption measurement in compressed air, nitrogen, natural gas, methane, helium, argon, carbon dioxide, hydrogen, SF6; measuring laminar flow, burner supply air, leakage flows; monitoring safety-related installations, also in aeronautical applications.
– for use in air, compressed air, nitrogen, natural gas, methane, deposit gas, argon, helium, propane, butane, CO2, SF6
– probe for pipeline installation from Di 25 mm, measuring tube from Di 8 mm
– measurement of gas mass flow
– standard flow velocity 0.08 m/s to 200 m/s, volume flow up to 0.04 m3/h
– time constant of under 1 s
– for applications in Ex areas
– M-Bus, WLAN
1
People watching this product now!
Description
Description
Specifications:
Models:
| Insertion Probe | Measuring tube | fixed evaluation unit | portable evaluation unit | Software |
 |
 |
 |
 |
 |
Related products
Electro Magnetic Flow Meter SSEAMFI
In stock
SKU:
SSEAMFI
The Schmierer SEA Electro Magnetic Flowmeter Range is based on Faraday's Law of Electromagnetic Induction. When the conductive fluid flows through a magnetic field of the sensor, an electric voltage proportional to the volume flow is generated between the pair of electrodes and transmitted to the output device.
The flow and volume will be displayed at the electronic transmitter
No disturbance or restriction of flow
No moving parts - no wear and tear, virtually no pressure loss
Insensitive to fluid density, temperature, pressure, viscosity
Can be used for different types of conductive liquids (calibration with water required)
download pdf datasheet
Itabar Pitot Tube Fluid&Gas Flow
In stock
SKU:
Itabar ibr-ibf-ibf100
The ITABAR flow sensor series is designed to measure the volumetric flow of liquids and gases. They are available as threaded (IBR) or flanged (IBF) versions with a pipe size range from DN 25 to DN 2000 and a max temperature of up to 1175°C (flanged). The Flo-tap option allows installation and removal under pressure.
nstallation & removal requires process shut down.
IBR series with threaded process connections
IBF series with flanged process connections
IBF 100 series for flue gass applications with opt. air purge unit
download pdf datasheet
Massflow Sensor RHM15 middle size 1 – 200 kg/min
In stock
SKU:
RHM15
The RHM15 is an all-purpose meter suitable for liquid processing plants. A wide application flow range capability allows for commonality of installation across numerous lines – a real benefit to owners and operators.
PDF datasheet
Massflow Sensor RHM20 middle size 2.25 – 300 kg/min
In stock
SKU:
RHM20
The RHM20 is a 2″ meter designed for general purpose flow measurement without the need for maintanance. Robust and accurate, the RHM20 outperforms other flow technologies at an attractively low cost of ownership.
PDF datasheet
Ultrasonic Clamp-On Flow Meter
In stock
SKU:
SSEA UCOF
The Schmierer SEA UFP 1.0 portable clamp-on ultrasonic flowmeter is the ideal flow measurement tool for short or long-term monitoring of several flow points, data logging and verification of buit-in flowmeters.
The transducers are easily set up and can be used for pipe sizes from DN 25 to 5000. The ergonomically designed handheld transmitter comes with a metal protection case against corrosion and a backlit color digital display. The recharchable battery lasts for 12 hours of continuous operation
download pdf datasheet
Ultrasonic portable Clamp-On Flow Meter
In stock
SKU:
SSEA UFP1.0
The Schmierer SEA UFP 1.0 portable clamp-on ultrasonic flowmeter is the ideal flow measurement tool for short or long-term monitoring of several flow points, data logging and verification of buit-in flowmeters.
The transducers are easily set up and can be used for pipe sizes from DN 25 to 5000. The ergonomically designed handheld transmitter comes with a metal protection case against corrosion and a backlit color digital display. The recharchable battery lasts for 12 hours of continuous operation
download pdf datasheet
VA Flowmeter RA65/FA65 protective steel tube
In stock
SKU:
RA65/FA65
VA Flow Meter with protective steel tube and borosilicate measuring cone
The measuring units RA 65 and FA 65 are based on the variable area float principle.
In pipelines the RA 65 is installed by means of pipe unions and the FA 65 is mounted between flanges. The borosilicate glass measuring cone is located inside a protection steel tube with an inspection window.
VA flow meters RA 65 and FA 65 are most suitable for the flow measurement of transparent fluids and gases. Each unit is customized with a scale specific for the medium to be measured. RA 65 and FA 65 are used e.g. in plant and process engineering.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors. By installing an linear displacement sensor an output signal can be generated which is proportional to the height setting of the flow meter.
download pdf datasheet
Vortex Flow Meter
In stock
SKU:
SSEA VF
The VF Vortex Flowmeter measures the volumetric flow of fluids (gases, vapors, liquids) in closed pipes. It is based on the Vortex shedding principle, (or Karman Vortex Effect). The fluid passing through the measuring tube is separated by a triangular prism with a broad flat front and generates two lines of eddies or vortices, the Karman Vortex shedding street. The vortex shedding frequency is proportional to the flow rate.It is detected by a sensor with 4 piezo-electric elements and converted into an electronic output signal.
High quality and safety standards:
no moving wear off parts inside, no abrasion
fully welded SS304 body (opt. SS316)
Japanese OVAL technology and design
embedded sensor
Digital Circuit Board for anti vibration and anti interference
Easy installation and flow conversion, (w. pressure and temp. compensation)
download pdf datasheet
