Flow Switch high temp. paddle type EFS
Flow Switch high temp. paddle type EFS
Click to enlarge
Ensim

Flow Switch EFS 1/2″ BSP

EFS is used in order to check safely whether there is flow or not by detecting movement of liquids inside the pipe. It provides information about flow with high reliability without spending energy in cooling water or lubricating oil circuits, in the devices such as flash heater, central heating boiler and heater – 1/2″ BSP, vertical assembly only

download pdf datasheet

4 People watching this product now!
SKU: EFS swirl 11/12/13 Categories: ,
Description

Description

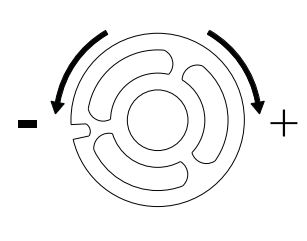

EFS11adjustIncreasing  flow rate (For water): 0,6…1,2 l/min or 1,5…2.5 l/min
The set point can be adjusted by turning the stamp in the body.

Advantages:

  • Pratical way can be mounted.
  • Economical.
  • Relay circuit contactless with fluid

Technical Specifications:

Process Temperature: -20…+100°C
Process Pressure: Max. 20 bar
Contact: NO Single Contact
Cable: PVC 0.5 m
Spring: Stainless Steel
Protection Rating: IP68
Adjustable sensitivity
