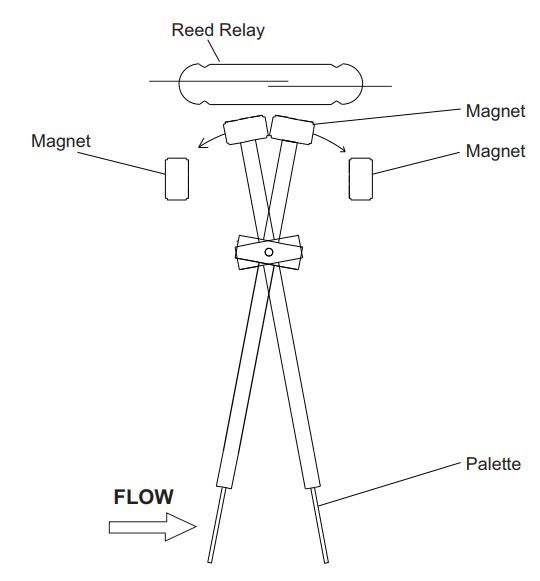

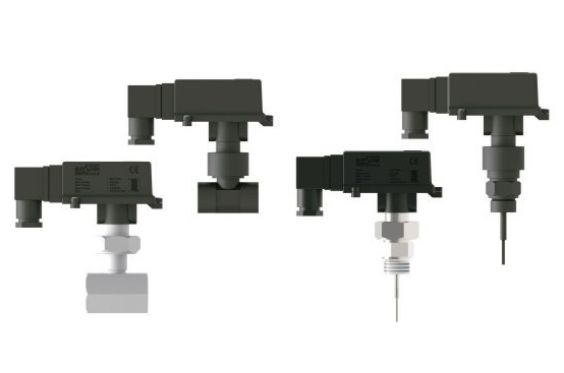

Flow Switch paddle type EFS

VA Flowmeter with plastic armature and borosilicate glass measuring cone Measuring units RA 77 and FA 77 are based on the variable area float principle. The flow meter consist of a PVC armature with a measuring cone made of borosilicate glass. With these design features the RA 77 / FA 77 devices combine the advantages of the classical VA flow meters with those of pure plastic measuring devices: Cost-effective, resistant against almost all aggressive media, as well as a high accuracy of the measuring glass, which can be calibrated to suit any requirement. Especially with water and aggressive media this design has proven itself. Therefore the RA 77 / FA 77 are frequently used in the chemical industry and in water treatment plants. By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors. download pdf datasheet

The SGM PP/PVC VA Flow meter is a cost effective fully plastic Version - for chemical applications with highly acidic media, e.g. hydrochloric acid. Since the vertical position of the float is transmitted magnetically to a dial gauge, the SGM, as opposed to standard type variable area flow meters with a glass tube, is also suitable for measuring the flow of opaque media. Each device is individually calibrated to meet customer specifics and fitted with a medium specific scale. download pdf datasheet
