Presys

Universal Process Calibrator MCS-XV

The Presys Universal Process Calibrator MCS-XV with all instrumentation signals: electrical, temperature, frequency and pressure, HART communication protocol

download pdf datasheet

3 People watching this product now!
SKU: MCS-XV Categories: , , ,
Description

Description

Features

  • Easy LabView interface with the WebApi commands.
  • Up to four optional modules of 250 mmH₂O pressure to 10,000 psi. It has the barometric reference (optional) for absolute pressure indication.
  • Hart Full Configurator (optional). Compatible with DD configuration files recorded in FieldComm Group.
  • 24Vdc power supply for two-wire transmitter. internal 250 ohms resistor configurable.
  • Documentation capability. Automatic calibration tasks can be created or executed with or without the use of computers.
  • Calibration Reports issued directly to USB printer or PDF file.
  • Data logger function for data acquisition and display in graphical format.
  • Touchscreen display with high visibility friendly interface.
  • Compact, portable, powered by rechargeable batteries for field use.
  • Also available in versions Desktop (DT) and 19″ Rack Mounting (RM).
  • e-Connected: Ethernet, Wi-Fi (optional), Pen-drive, Hart and USB Host/Device.

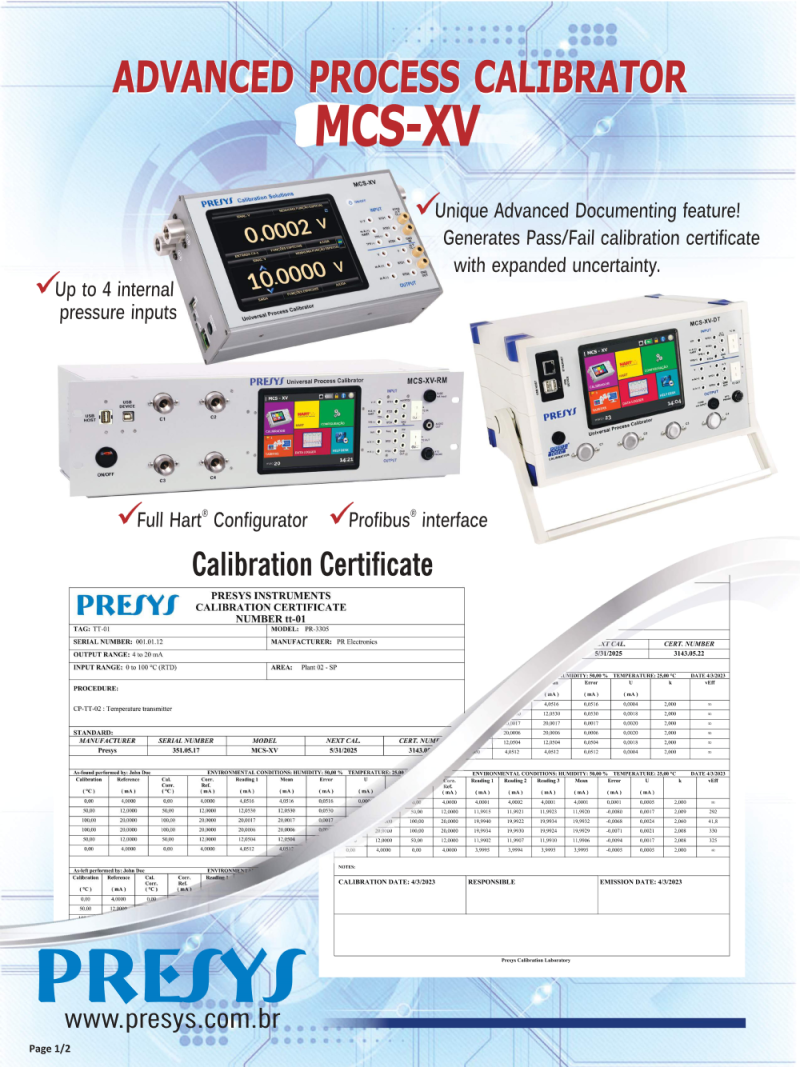

 MCS XV



About Presys
More Information
SMART CALIBRATORS
SMART CALIBRATORS (1)
SMART CALIBRATORS (2)
SMART CALIBRATORS (3)
SMART CALIBRATORS (4)

    Key Benefits

    • Multifunctional & Integrated Design
    • High Accuracy & Stability
    • Advanced Automation & Documenting
    • Advanced Communication

    Products & Features

    Presys specializes in a wide range of calibration equipment and software solutions for pressure, temperature, and electrical signals as well as PSV valve workstations. Presys maintains its own laboratory to guarantee traceability to international standards (SI). Many Presys devices include HART protocol support, built-in PDF viewers, and the ability to generate reports directly from the device via Wi-Fi or USB.

    • Temperature Calibrators: dry block and liquid bath, -60 °C to 1200 °C.
    • Pressure Calibrators: automatic - intrinsically safe - compact
    • Universal Process Calibrators: accuracy up to 0.01% FS - intrinsically safe
    • Mobile Calibration workstations for pressure safety/relief valves (PSV) - compact, transportable, automated digital registration of critical testpoints, 1/2” to 10”, up to 700 bar
    • Smart Connectivity: Compatible with HART, Profibus, USB, Internet, integration with SAP, Azur, Oracle, SQL
    • Calibration Software: calibration automation and management system that centralizes data, schedules calibrations, and issues certificates.
