Smart Dryblock Temperature Calibrator TA

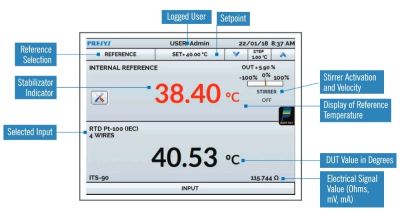

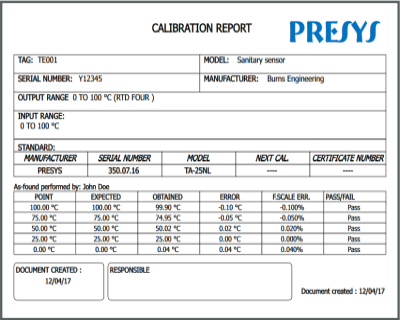

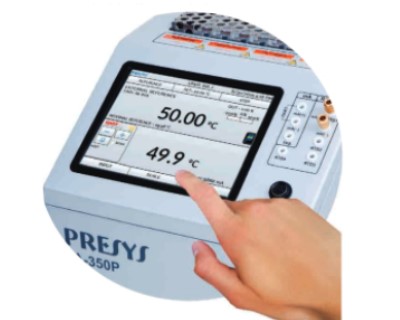

The calibration of your temperature sensors has never been so easy with the TA user-friendly interface on its large touch screen. You can get now a calibration test report at your finger tip without installing any specific software:

• user-friendly interface
• automatic temperature cycling – tasks
• Industry 4.0 Interconnectivity

The TA makes it all! It has an internal temperature standard, a calibrator for your DUT (Device Under Test) measurements and an internal powerful processor to control the automatic cycling and generates the calibration reports.

The TA dry block will also connect easily to your metrology or CMMS (Computerized Maintenance Management System) applications as it has an open and documented protocol as well as different modern way to communicate through an Ethernet, Wi-Fi or USB interface.

TA series are available for a wide temperature range from -60 °C to 1200 °C covering most of your industrial temperature calibration needs and they are conform to EURAMET/cg-13/V03, EA Guidelines.

Features:

• 5.7″ Touch Screen Color Display. Dual Core 1 GHz processor and Flash memory of 16 GB.
• Electric Power Supply: 115 or 230 Vac, 50/60 Hz.
• Unit/Temperature Scales: ºC, ºF and K, IPTS-68 or ITS-90, user selectable.
• Ethernet, Wi-Fi via USB/Ethernet router adapter, Serial USB with SCPI protocol.
• Host/Device USB port.
• Optional HART Communication, HART Digital Calibration.
• Input Thermocouple: J, K,T, N, L: ± 0.2 ºC @ 660 ºC/ E: ± 0.1 ºC @ 660 ºC / R, S, C: ± 0.7 ºC @ 660 ºC.
• CJC Accuracy: ± 0.2 ºC.
• Input RTD: 2, 3, 4 Wires / Pt-100, Pt-1000 / ± 0.1 ºC.
• Thermostats Automatic Test and Reporting.
• Input Current: -1 to 24.5 mA, ± 0.01% FS.
• Transmitter Power Supply: 24 Vdc regulated.
• External Reference Sensor Input (TC for TA-1200P).
• Automatic self-calibration using external reference probe.
• Temperature Ramp Setting
