SWIRL FLOW METER SSEASWFVI

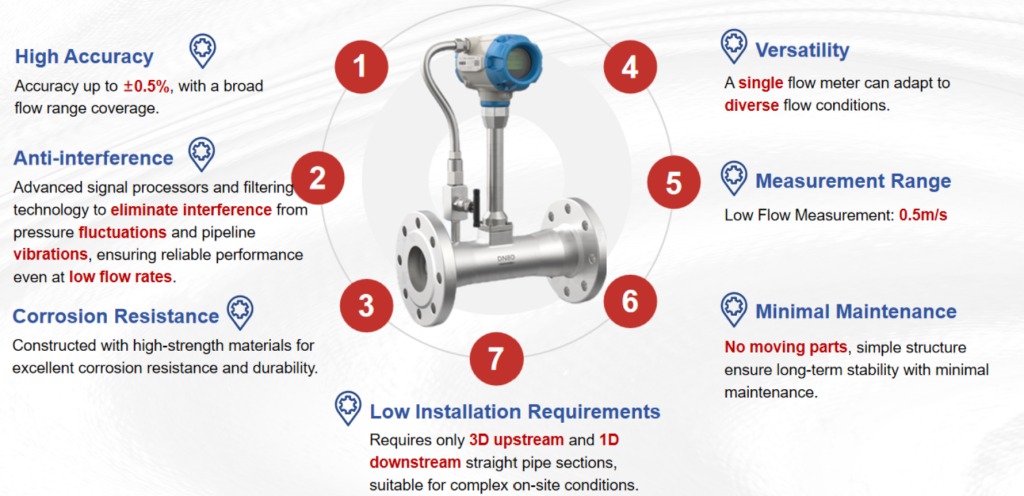

The SSEASWFVI Swirl Flow Meter is an advanced, high-precision industrial instrument designed to measure the volume flow of liquids, gases, and steam. Built using cutting-edge Digital Signal Processing (DSP) and fluid rotation principles, it conditions the flow within the meter itself to deliver accurate and reliable readings, even in demanding environments like oil and gas, chemical processing, and power generation:
- High Accuracy, 0.5%
- Anti-Interference from pressure fluctuations, vibrations
- Corrosion Resistance
- Low Installation Requirement: 3D upstream, 1D downstream straight runs
- Low Flow Measurement: 0.5m/s
- Minimal Maintenance: no moving parts, long-term stability
4
People watching this product now!
Description
Description
The SSEASWFVI Enhanced Swirl flowmeter is a dependable device, designed with a simplified structure that is highly versatile and interchangeable. It utilizes digital signal processing, which enhances its anti-interference capabilities. The circuit module is assembled with components that meet higher reliability and durability standards, and the surface mount modular design eliminates low-reliability components such as potentiometers and plugs. This ensures that the flowmeter is highly stable and accurate.It is widely used in industrial sectors such as petroleum, chemical engineering, metallurgy, as well as in municipal construction and environmental protection projects. It measures, detects, and controls the flow of most liquids, gases, and steam.
Specifications:
| Item | Description |

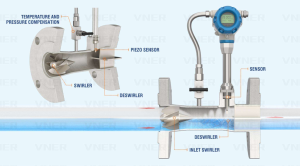

| Measuring principle | Swirl / vortex precession, frequency proportional to volumetric flow |
| Measured media | Liquids, gases, saturated and superheated steam (clean or slightly contaminated) |
| Body & flange material | Carbon steel, SS304, SS316L; customization upon request |
| Sensor wetted material | SS304, SS316L, Hastelloy C, Hastelloy B, Titanium |
| Sensor type | Piezoelectric (standard) |
| Typical accuracy (liquids) | ±0.5 % of rate (under calibrated conditions) |
| Typical accuracy (gases & steam) | ±1.0 % of rate (under calibrated conditions) |
| Turndown ratio | Up to 1:20 (depending on medium and installation conditions) |
| Straight pipe requirement | Typically 3 * DN upstream / 1 * DN downstream (confirmed per installation) |
| Temperature capability | Standard up to 250 ℃; extended steam versions up to 400 ℃ (optional) |
| Pressure rating | 1.6 MPa / 2.5 MPa / 4.0 MPa (model-dependent; see datasheet) |
| Process connection standard | GB, DIN, ANSI (others on request) |
| Main applications | Energy metering, utility monitoring and process control in industrial plants |
| Category | Specification / Option | Notes |
| Outputs | 4-20 mA, pulse | Standard signal outputs for DCS/PLC integration |
| Digital communication | HART, Modbus RTU | Remote configuration and diagnostics (optional) |
| Compensation | Temperature and pressure inputs (optional) | Direct mass or standard volume flow output |
| Diagnostics | Signal quality, zero drift indication, basic self-checks | Accessible via local display or digital communication |
| Design | No moving parts, fully welded flow path | Low maintenance, reduced wear and pressure loss |
| Installation | Flanged process connections (others on request) | Compatible with common industrial piping standards |
Â
