Presys

Isoplan Calibration Software

The Calibration Automation and Management System ISOPLAN software for Calibration Station and Presys Calibrators for instrument calibrations. It offers Reliability, Security, Compliance, Productivity and Flexibility.

download pdf datasheet

0 People watching this product now!
SKU: Isoplan Categories: ,
Description

Description

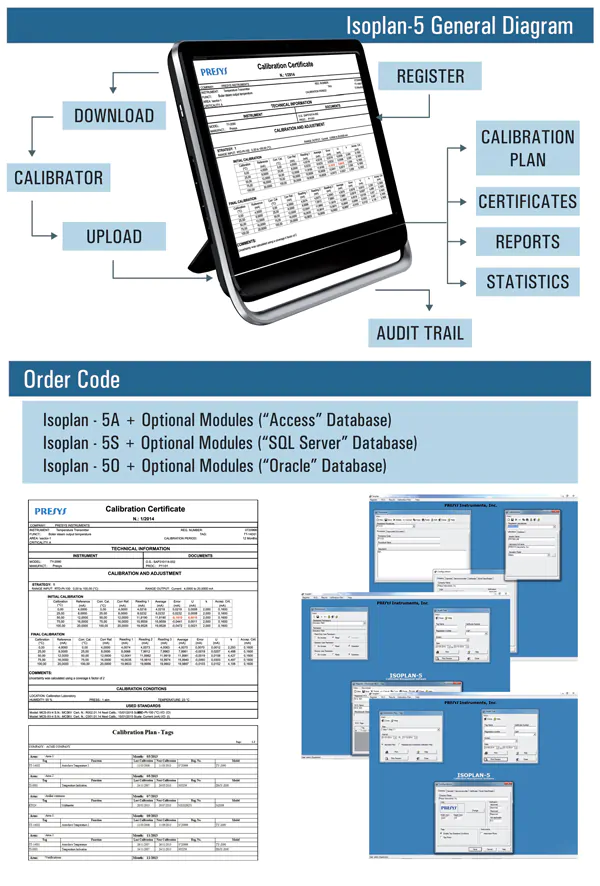

isoplan 5 calibration software Presys CalibrationISOPLAN Calibration and Management System

  • Meets ISO 10012 requirements.
  • Allows instruments registration, tags, calibration standards, factory areas.
  • Calibration management with calibration frequency monitoring.
  • Retrieval of calibration history.
  • Statistical control of calibrations and hours of work, through reports and charts.
  • Issues of Calibration Certificates as well as calibration scheduling plan and worksheets.
  • Automatic and manual downloads / uploads.
  • Due date calibration alarms of instruments and standards.
  • Enables calibration datasheets export in Excel spreadsheets.
  • Database format: Access, SQL Server or Oracle.
  • Company Logo and certificate customization.
  • Error versus time chart.
  • Chart of the calibrations distribution through the year.
  • Calibration plan, annual / biannual / monthly and also by factory area option.
  • Flagging for inactive instruments and standards.
  • Calibration certificate and failures numbering.
  • Automatic calculation of the expanded uncertainty for two or more standards.
  • Registration and management of failures and occurrences.
  • User level to control access profile.
  • Calibratin control of external laboratories.
  • Calibration of pressure switch, thermoswitch etc.
  • Possibility of adding instrument and the tag photos to the register.
  • Filters for advanced search with different criteria of selection for the records and calibrations results.
  • Several optional modules available.





About Presys
More Information
SMART CALIBRATORS
SMART CALIBRATORS (1)
SMART CALIBRATORS (2)
SMART CALIBRATORS (3)
SMART CALIBRATORS (4)

    Key Benefits

    • Multifunctional & Integrated Design
    • High Accuracy & Stability
    • Advanced Automation & Documenting
    • Advanced Communication

    Products & Features

    Presys specializes in a wide range of calibration equipment and software solutions for pressure, temperature, and electrical signals as well as PSV valve workstations. Presys maintains its own laboratory to guarantee traceability to international standards (SI). Many Presys devices include HART protocol support, built-in PDF viewers, and the ability to generate reports directly from the device via Wi-Fi or USB.

    • Temperature Calibrators: dry block and liquid bath, -60 °C to 1200 °C.
    • Pressure Calibrators: automatic - intrinsically safe - compact
    • Universal Process Calibrators: accuracy up to 0.01% FS - intrinsically safe
    • Mobile Calibration workstations for pressure safety/relief valves (PSV) - compact, transportable, automated digital registration of critical testpoints, 1/2” to 10”, up to 700 bar
    • Smart Connectivity: Compatible with HART, Profibus, USB, Internet, integration with SAP, Azur, Oracle, SQL
    • Calibration Software: calibration automation and management system that centralizes data, schedules calibrations, and issues certificates.
