Magnetostrictive Level Sensor

Description

Applications:

The Magnetostrictive Level Transmitter is widely used for the petroleum, chemical raw material storage, industrial process, biochemistry, medicine, food and beverage, regional management and underground storage of gas stations, dam water level, reservoir water level monitoring and sewage treatment, etc.

Features:

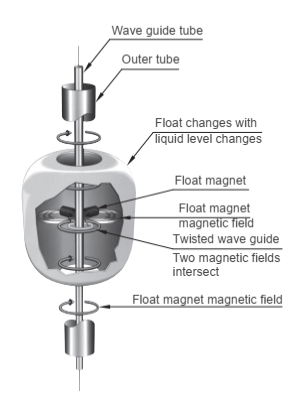

When the sensor of the magnetostrictive level transmitter is working, the circuit part of the sensor will excite a pulse current on the waveguide wire. When the current propagates along the waveguide wire, a pulse current magnetic field will be generated around the waveguide wire. A float is provided outside the sensor measuring rod of the magnetostrictive liquid level transmitter, and this float can move up and down along with the changing of the liquid level along the measuring rod. Inside the float, there is a set of permanent magnetic rings.

• High accuracy

• Never requires re-calibration: set it & forget it.

• Superior Sensor

• Local indication with HMI display.

• Dual compartment housing with separate fields.

• Loop powered to 22m (75ft) probe length.

• Total and/or interface level measurement.

Advantages:

• Magnetostrictive level transmitters are suitable for the level measurement of clean liquid level with high precision requirements, the accuracy reaches 1mm, and the latest product accuracy can reach 0.1mm.

• It can also be applied to the boundary measurement between two different liquids.

• Explosion-proof design, suitable for dangerous occasions, the intelligent electronic circuit design can calculate the volume; the only movable part is afloat, and the maintenance is extremely low.

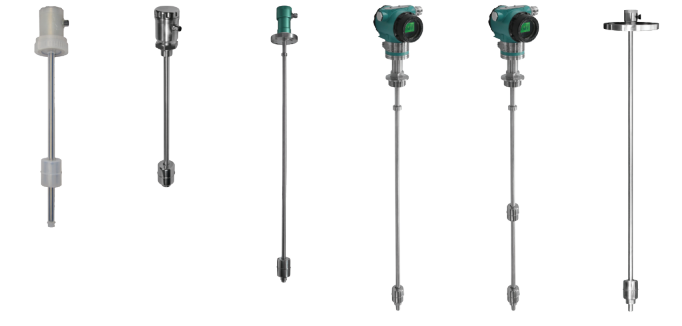

Product Series SSEA Magnetostrictive Level Transmitter:
