Rotary Paddle Switches for solids

Description

A palette selected according to the material is installed on the tip of the motorized level switch which can be installed on the tank wall. It revolves idly with the revolution speed of the probe motor. Material to be detected reaches to the level of the palette and covers its circumference and creates a counter-force according to the revolution force. Firstly,level information alarm contact is activated. Then, the other contact is triggered and stops the motor. Adjustment of the spring in four different torque values according to specific weight of the material can be realized by the user. When the material level at the end of the palette is decreased the created force is released and the motor starts to revolve, consequently,changing the alarm position

Applications

Plastic Industry ; PVC, PVDF, PP granular etc..

Food Industry ; Grain Dust, Ground Corn, Sugar-Granulated,Cacao, Malt-Graoung Dry, Sunflower Corn, Whead, Peanuts-Shelled,Clays- Kaoline, Talcum Powder, Ground-Paprika, Coffee-Roasted vb..

Building Industry ; Rocks-Limestone Crushed, Lime,Cement Powder, Rubber Ground, Lime Hydrate Dust,Calsium Dust, Iron Chips,Silica Sand, Moulding Sand, Styrofaam etc..

Wood Industry ; Wooden Fiberst, Saw Dust etc..Other Chemistry Industry ; Coal Lump, Ash-Coal Dry etc

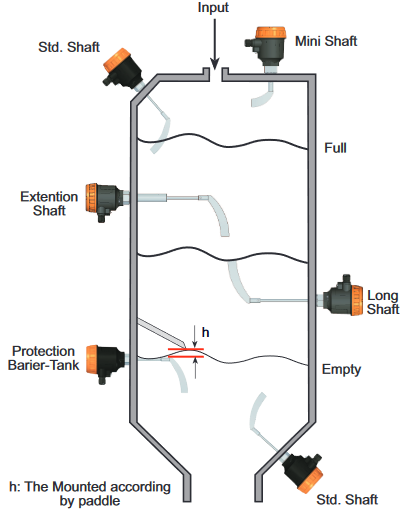

Mounting Examples

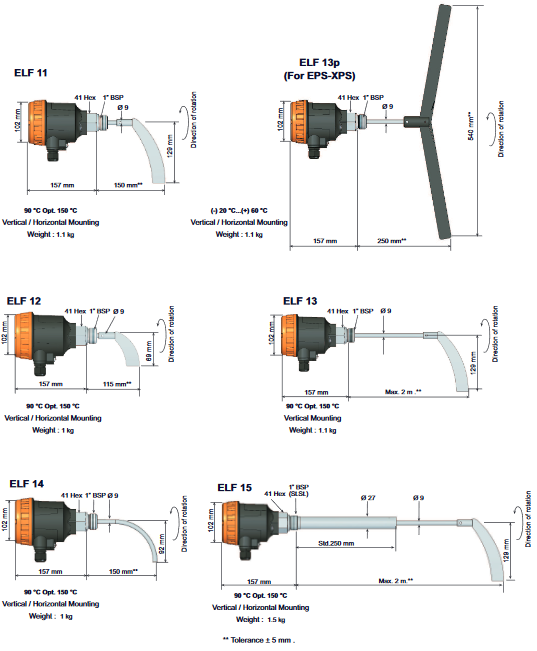

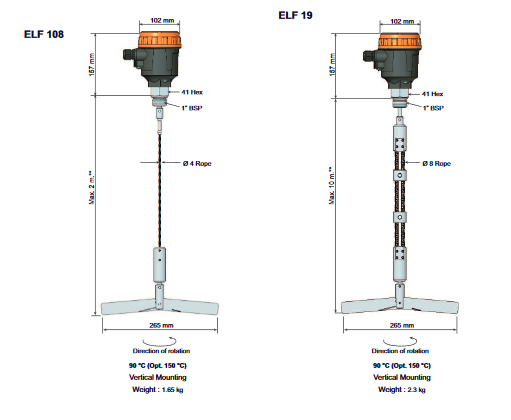

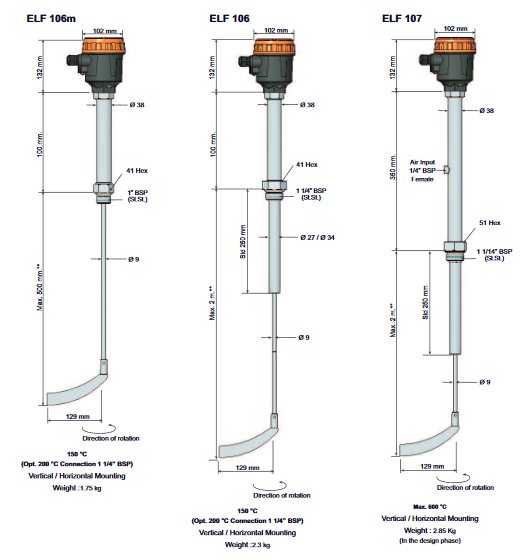

Models
