Ultrasonic Level Transmitter

Description

From the emission of the ultrasonic wave to the new reception, the time is direct proportion to the distance from the probe to the measured medium. The electronic unit detects the time and calculates out the measured distance according to the known sound velocity. By subtraction the value of medium position is obtained.

Applications:

Ultrasonic level sensors can be widely used in petroleum, mining, power plants, chemical plants, water treatment plants, sewage treatment stations, agricultural water, environmental monitoring, food (brewery, beverage industry, additives, edible oil, dairy products), flood resistance Many industries such as flood control, hydrological monitoring, open channels, and spatial position.

Advantages:

• Compared with laser ranging technology, it has the advantages of simplicity and economy;

• Ultrasonic technology generally does not require moving parts, easy installation and maintenance;

• Ultrasonic level gauge can not only fixpoint and continuous position but also can conveniently provide signals needed for telemetry or remote control;

• Compared with the radioactive positioning technology, the ultrasonic level meter does not require protection.

Specifications:

• The maximum range is up to 40m and the solid level measurement is up to 25m.

• The minimum resolution is 1mm.

• LCD / LED large display screen.

• Intelligent signal processing technology.

• All plastic anti-corrosion shell: protection grade IP67.

• Patented transducer structure: When the flange of the small-scale level gauge is installed, there is no requirement for the flange connection length.

• Simple key setting parameters: no need to wait for the container to empty or fill up, no need for additional remote control.

• Flexible installation method: thread (flange), fixing hole (bracket).

• The probe can be lengthened: it is suitable for the installation of outdoor closed containers in cold areas to prevent frost.

• Equipped with high and low double relays: four-wire system provides this function.

• AC and DC power supply options: four-wire system and split machine host provide this function.

Details:

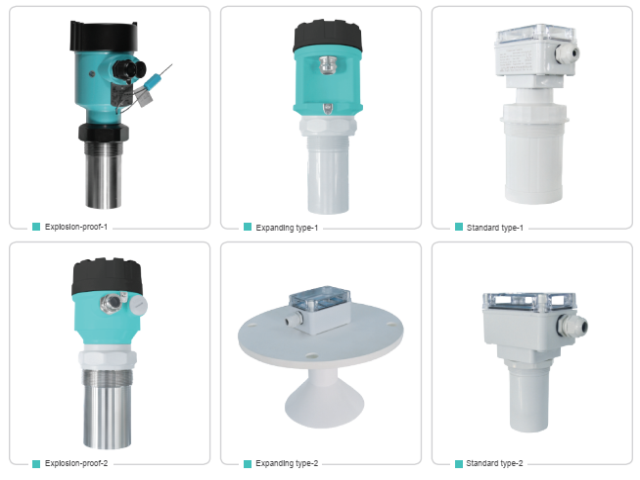

Product Series SSEA Ultrasonic Level Transmitter:
