HSPV
ITA Magnetic Level Indicator – Standard
ITA Magnetic Level Liquid level indicators for low and medium pressure
Series ITA 3,6,7
ITA Magn. Level Gauges are used wherever fluid level has to be monitored, indicated, and controlled in a reliable way, especially with corrosive, toxic and inflammable fluids with a viscosity up to max. 5000 mPa s.
The ITA level indicators offer a reliable, accident-free and maintenance-free usage, through a simple and break-resistant construction at a maximum process pressure of 320 bar and a temperature range from –50 through 400 °C for open and closed vessels. The fluid level is indicated directly with a separation of the measurement and indication area. The magnetic transfer of the fluid level from the tank to the indicator is continuous and vibration-resistant, even in the case of fast changing levels.
1
People watching this product now!
Description
Description
Liquid level indicators for low and medium pressures, Series: ITA-3/6/7
- Wetted components made of corrosion-resistant stainless steel 316L as a standard.
- Pressure ranges: PN16, PN40, PN64/ANSI 150#, 300#, 400#, 600#)
- DIN- or ANSI-connection flanges
- Float design exactly adapted to the operation conditions
- Versions up to 12 m length (two sections)
- Special materials for special application parameters:
- Titanium, Hastelloy C4, Inconel 625, TP317 LN, Monel, PTFE-lining (only PN16)
- Accessories: Drain- and ventflanges, valves, reducers etc…
- Types ITA-3.0/6.0/7.0 with CS-flanges.
Indication rails:
Aluminium and stainless steel indication rails for media up to 400°C
Makrolon indication rails for media up to 120°C
Switches and alarm contacts:
Attached with a pipe clamp for positioning at any desired height
Connection via 3-wire cable or terminals in the housing
SPDP contact can be wired for either NC or NO function
Ex-Version (EEx i / EEx d) various types; changeover contact, proximity switch

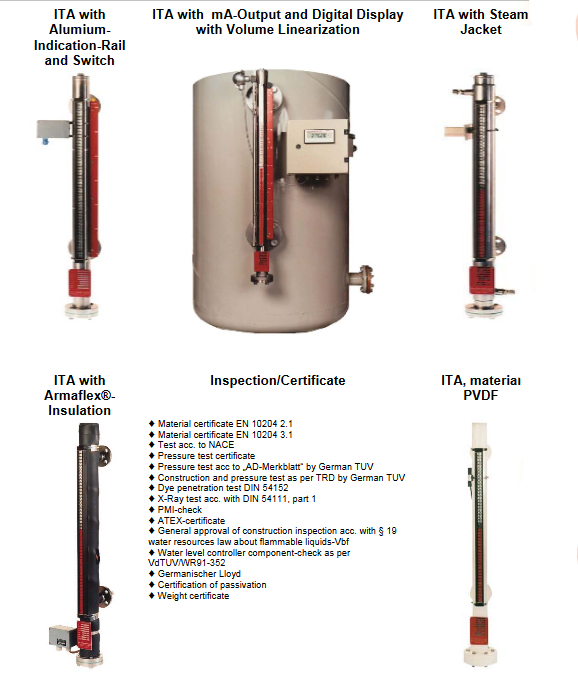

Types:
