Vortex Flow Meter

The VF Vortex Flowmeter measures the volumetric flow of fluids (gases, vapors, liquids) in closed pipes. It is based on the Vortex shedding principle, (or Karman Vortex Effect). The fluid passing through the measuring tube is separated by a triangular prism with a broad flat front and generates two lines of eddies or vortices, the Karman Vortex shedding street. The vortex shedding frequency is proportional to the flow rate.It is detected by a sensor with 4 piezo-electric elements and converted into an electronic output signal.

High quality and safety standards:
no moving wear off parts inside, no abrasion
fully welded SS304 body (opt. SS316)
Japanese OVAL technology and design
embedded sensor
Digital Circuit Board for anti vibration and anti interference
Easy installation and flow conversion, (w. pressure and temp. compensation)

download pdf datasheet

4 People watching this product now!
Description

Description

Parameters
Flow Range: 0.01 – ±12 m/s
Pipe Size: 1″ – 200″, (25mm – 5000mm)
Repeatability: 0.15%
Accuracy: ±0.5% (±0.5m/s – ±5m/s)
Operating Temperature: 40° – 120° C
Time Resolution Ratio: up to 10ps
Sampling Time: up to 400 times/sec

Transmitter
Type: handheld
Display: 3.5″ TFT (320×240) color screen, backlit LCD
  23 easy to operate touch buttons
  32 bit CPU working speed
Analog output: 4-20 mA
Communication protocol: Modbus, Fuji
Data Logging: 2G SD card
Battery: Rechargable lithium-ion battery
  with continuous operation for 12 hour

Product Types:

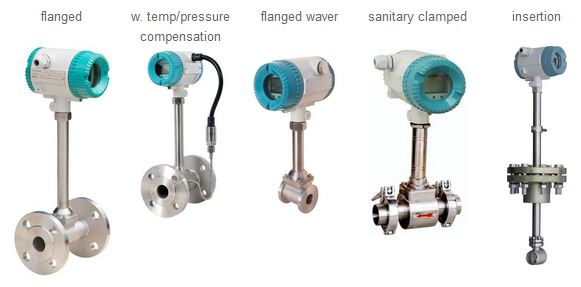

Vortextype
