Ensim

Flow Switch Fire EFS

EFS is used in order to check whether there is flow or not inside of pipe.
In order to secure electrical equipment’s safety and return malfunction signal;
flow switches are useful as they are providing open/close switches regarding
the flow. Can be used with variety of liquids if not corrosive. Time delay
is available with the help of a hand wheel while adjustment screw is set by
default before delivery. Users can change according to their applications.
of non-corrosive liquids.

download pdf datasheet

3 People watching this product now!
SKU: EFS Fire Categories: ,
Description

Description

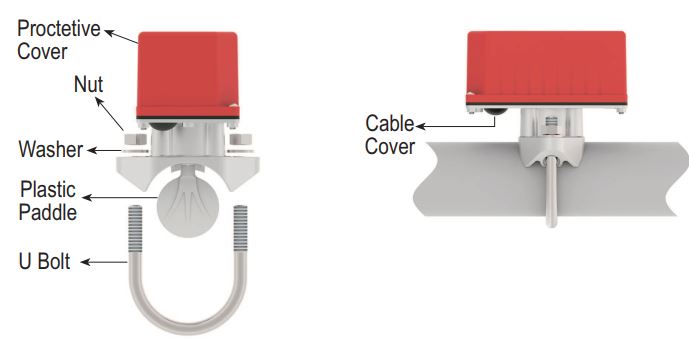

EFS1000description

Advantages:

  • Time delay can be adjustable
  • Double contact output.
  • Can be connected with U-Bolt.
  • Suitable for fire lines.

Application Fields:

Fire systems, irrigation systems, low viscosity oil and acids,
heating and cooling systems, water installations.

Technical Specifications:

Brand: Ensim Sensors
Model: EFS1050/1065/1080/1100/1125/1150/1200
Working Pressure: 31 Bar (450 PSI)
Test Pressure: 62 Bar (900 PSI) %100
Working Temperature: 4.5°C -50°C (40°F – 120°F)
Contact: 2×10 Amper 125/250 VAC
              2. Amper 6/12/24 VDC

Line Diameter
DN50 / DN65 / DN80 / DN100 / DN125 / DN150 / DN200
