Water Turbine Meter SSEA WM III

Description

The Water Turbine Flow Meter SSEAWMIII with magnetic transmission, super dry type register for Industrial and Irrigation application has the sizes from DN40 to DN500 designed and meets to the requirements of Directive  2014/32/EU on measuring instruments and of European Standard EN14154.

Characteristics

All the materials in contact with water, consciously selected by the known resistance to corrosion;
Ductile Iron body with inside and outside epoxy coating for protecting the corrosion;

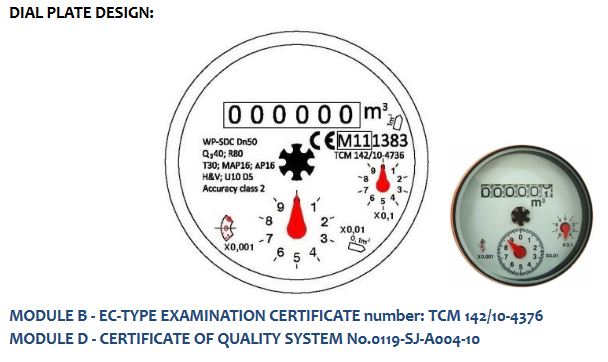

ROTATING indicator register for the most comfortable reading position;
The copper can super dry register with IP68 protection for most reliable;
The interchangeable, removable measuring mechanism can be easy removed from the body forchecking, maintaining and replacing, no needs to dismantle the body form the pipe;
Suitable for any position installation including Horizontal, Vertical and Inclined;
Low pressure loss;
Not effected by external magnetic fields;

Pulse output always ready, and Pulse output AS OPTION:
• The Pulse Output Device consists of a plastic housing with a Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
• Electric Data: Vmax=24AC/DC; Imax=0,01A

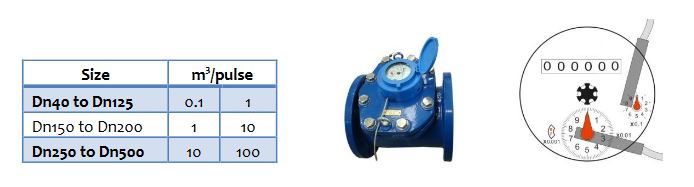

• Capacity of the Pulse Emitter:

INSTALLATION REQUIREMENTS:
TURBINE water meter can be installed in any position including Horizontal, Vertical and Inclined with the direction of the flow as indicated by the arrow cast in the meter body;
TURBINE water meter needs to have 10 diameters straight pipe ahead of the meter and 5 diameters straight pipe after to insure proper flow through the meter;
Pipeline must be flushed before installation;
The meter should be constantly full of water during operation;
Recommneded to install the FILTER before the water meter
