Electro Magnetic Flow Meter SSEAMFII
The SSEAMFII series electromagnetic flowmeter is suitable for the conductive medium with a conductivity higher than 5μs / cm. It is composed of the sensor and converter, and the sensor consists of measuring tube, electrodes, excitation coils, iron core and shell and other components. After the traffic signal is amplified, processed and operated by converter, you can see the instantaneous flow, cumulative flow, output pulse, analog current and other signals for the measurement and control of fluid flow. It adopts the smart converter so that it not only has the measurement, display and other functions, but also supports the remote data transmission, wireless remote control, alarm and other functions.
◆ Excellent measurement repeatability and linearity
◆ Good reliability and anti-interference performance
◆ Good pressure resistance sealing ability
◆ Low pressure loss measurement tube
◆ High intelligentization
◆ Maintenance-free
0
People watching this product now!
Description
Description
In addition, it possesses a variety of power supply methods and signal output using the standard RS-485 serial communication interface, as well as supports the international standard MODBUS-RTU protocol and GPRS and other wireless or wired communication network methods, and also has the accumulative pulse equivalent output. It provides the wireless meter reading system that can access the network in a long-distance (computer management software and databases)
Performance Parameter
| Nominal diameter | 15-2000mm | ||
| Velocity range | 0－10m/s | ||
| Degree of accuracy | ±0.5%R，±1%R（＜DN20 ) | ||
| Medium conductivity | ≥5uS/cm，Actual conductivity≥30uS/cm | ||
| Nominal pressure | 10Bar/PN10 | 16bar/PN16 | 40 bar / PN40 |
| DN15-DN800 | DN15-DN800 | DN15-DN50 | |
| Environment temperature | Sensor | 0℃ – +80℃ or -25℃ – +120℃ or +70-+250℃ | |

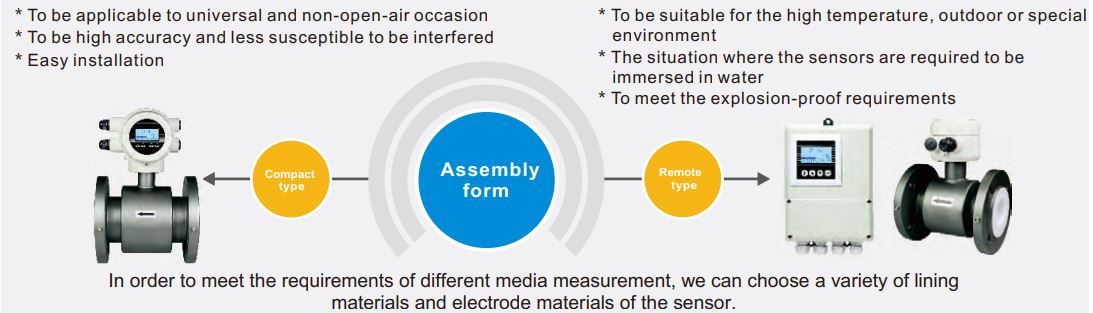

| Compact Type | -10℃ – +55℃ | ||
| Highest medium temperature |
Compact Type | +80℃ | |
| Remote Type | Fluorosilicone rubber(FVMQ) | +250℃ | |
| Polytetrafluoroethylene lining(F4) | +120℃ | ||
| Politef lining(F46) | +120℃ | ||
| CR chloroprene rubber liner (CR) | +80℃ | ||
| Teflon(PFA) | +180℃ | ||
| Output signal | 4-20mA；Pulse/Frequency 2kHz(Default)，5KHz(Max) | ||
| Cable entry size | M20 × 1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector) | ||
| Supply voltage | 110/220VAC(100-240VAC)，50Hz/60Hz；24VDC ±10% | ||
| Power dissipation | ≤15VA | ||
| Digital communication | RS-485,Support standard Modbus-RTU protocol;GPRS | ||
| Signal electrode and the ground electrode material |
Stainless steel 316L,Hastelloy C,Hastelloy B,titanium, tantalum, platinum | ||
| Form of electric pole | Interpolating, extrapolating electrode need to customize | ||
| Number of electrodes | Standard configuration 3-4 electrodes (two measuring electrodes plus a grounding electrode), according to the caliber configuration | ||
| Flange Standard | Conform to the international GB9119 ( customize according to customer’s demand) | ||
| Connecting flange material | Standard carbon steel and stainless steel are needed to be customized | ||
| Grounding ring material | Stainless steel, and stainless steel that contains molybdenum, etc. | ||
| DN15-DN450 | Stainless steel 1Cr18Ni9Ti(Ordinary austenitic stainless steel SUS321) | ||
| Housing material | Standard carbon steel and stainless steel are needed to be customized | ||
| Level of protection | Compact Type type | IP65 | |
| Remote Type | IP68、IP65 | ||
| Interval / wire length Remote style |
10m standard configuration connecting line, optional 15m, 20m, 25m, 30m. | ||
