Vortex Flow Meter VFIII
The SSEA VF3 Vortex Flowmeter measures the volumetric flow of fluids (liquids, air, gas and steam) in closed pipes.
1
People watching this product now!
Description
Description
- for liquids, gases saturated steam
- optionally with pressure and temp. compensation for mass flow
- temperature range up to 350°C
- Pipe size DN 15 to DN 300
- explosion proof Exd II BT6 available
Working Principles
The Vortex flowmeter is used for measuring the flow velocity of gases or liquids in the pipelines flowing full. The measuring principal is based on the development of a Karman vortex shedding street in the wake of a body
build into the pipeline. The periodic shedding of eddies occurs first from one side and then from the other side of a bluff body (vortex-shedding body) installed perpendicular to the pipe axis. Vortex shedding generatres a so-called “Karman vortex street” with alternating pressure conditions whose frequency is proportional to the flow velocity.
Applications
- Biogas, biomass gas flow measurement
- Boiler Steam Measurement
- N2 Blanketing for storage tanks
- industrial gas monitoring

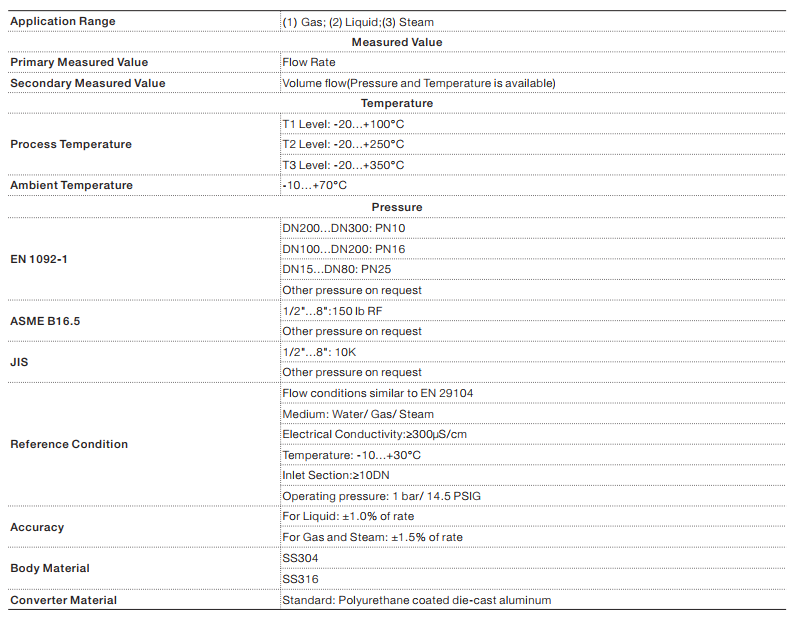

Technical Details:
Related products
Flap Flowmeter KLA
In stock
SKU:
KLA Flap
The KLA Flowmeter uses a flap which is deflected by the flow of the medium. The deflection angle is a direct indication of the flow through the pipe. The flap is gravity-loaded, thus the device can be used for the flow directions left to right, right to left and bottom to top.
In the variant KLA-GS the medium be measured is directly visible through a glass in the flow indication unit.
download pdf datasheet
Ultrasonic Clamp-On Flow Meter
In stock
SKU:
SSEA UCOF
The Schmierer SEA UFP 1.0 portable clamp-on ultrasonic flowmeter is the ideal flow measurement tool for short or long-term monitoring of several flow points, data logging and verification of buit-in flowmeters.
The transducers are easily set up and can be used for pipe sizes from DN 25 to 5000. The ergonomically designed handheld transmitter comes with a metal protection case against corrosion and a backlit color digital display. The recharchable battery lasts for 12 hours of continuous operation
download pdf datasheet
VA Flowmeter RA65/FA65 protective steel tube
In stock
SKU:
RA65/FA65
VA Flow Meter with protective steel tube and borosilicate measuring cone
The measuring units RA 65 and FA 65 are based on the variable area float principle.
In pipelines the RA 65 is installed by means of pipe unions and the FA 65 is mounted between flanges. The borosilicate glass measuring cone is located inside a protection steel tube with an inspection window.
VA flow meters RA 65 and FA 65 are most suitable for the flow measurement of transparent fluids and gases. Each unit is customized with a scale specific for the medium to be measured. RA 65 and FA 65 are used e.g. in plant and process engineering.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors. By installing an linear displacement sensor an output signal can be generated which is proportional to the height setting of the flow meter.
download pdf datasheet
VA Flowmeter RA77/FA77 plastic tube – glass cone
In stock
SKU:
RA77/FA77
VA Flowmeter with plastic armature and borosilicate glass measuring cone
Measuring units RA 77 and FA 77 are based on the variable area float principle.
The flow meter consist of a PVC armature with a measuring cone made of borosilicate glass. With these design features the RA 77 / FA 77 devices combine the advantages of the classical VA flow meters with those of pure plastic measuring devices: Cost-effective, resistant against almost all aggressive media, as well as a high accuracy of the measuring glass, which can be calibrated to suit any requirement. Especially with water and aggressive media this design has proven itself. Therefore the RA 77 / FA 77 are frequently used in the chemical industry and in water treatment plants.
By installation of electrical limit value switches, which are adjustable throughout the entire measuring range, this devices can be used as detectors.
download pdf datasheet
VA Flowmeter SGM
In stock
SKU:
SGM VA
VA Flow Meter for high temperature & pressure, chemical applications
In all cases where a dependable device is required for indicating instantaneous values and monitoring the flow in pipelines, the SGM is the obvious choice as a reliable device for measuring the flow of liquids and gases. Since the vertical position of the float is transmitted magnetically to a dial gauge, the SGM, as opposed to standard type variable area flow meters with a glass tube, is also suitable for measuring the flow of opaque media. Each device is individually calibrated to meet customer specifics and fitted with a medium specific scale.
download pdf datasheet
VA Flowmeter SGM PP/PVC
In stock
SKU:
SGM VA PP/PVC
The SGM PP/PVC VA Flow meter is a cost effective fully plastic Version - for chemical applications with highly acidic media, e.g. hydrochloric acid. Since the vertical position of the float is transmitted magnetically to a dial gauge, the SGM, as opposed to standard type variable area flow meters with a glass tube, is also suitable for measuring the flow of opaque media. Each device is individually calibrated to meet customer specifics and fitted with a medium specific scale.
download pdf datasheet
Vortex Flow Meter
In stock
SKU:
SSEA VF
The VF Vortex Flowmeter measures the volumetric flow of fluids (gases, vapors, liquids) in closed pipes. It is based on the Vortex shedding principle, (or Karman Vortex Effect). The fluid passing through the measuring tube is separated by a triangular prism with a broad flat front and generates two lines of eddies or vortices, the Karman Vortex shedding street. The vortex shedding frequency is proportional to the flow rate.It is detected by a sensor with 4 piezo-electric elements and converted into an electronic output signal.
High quality and safety standards:
no moving wear off parts inside, no abrasion
fully welded SS304 body (opt. SS316)
Japanese OVAL technology and design
embedded sensor
Digital Circuit Board for anti vibration and anti interference
Easy installation and flow conversion, (w. pressure and temp. compensation)
download pdf datasheet
Vortex Gasflow Meter VA40 ZG8 EXD
In stock
SKU:
Vortex VA40ZG8
Vortex probe VA40 with sensor head diagonal dimension 40 mm, variable insertion length and integrated transducer UVA in Ex-d explosion proof housing.
download pdf datasheet
