Universal programmable process controller UPPC

Description

The new process controller is designed for a multitude of applications in all areas of industry, such as the configuration of machines and equipment, the automation of processes, to control complex processes or as a multizone controller for various industrial applications. The UPPC can be customized for each control, regulating or monitoring application. The process technician or engineer simply defines the need for measuring components and the processes that need to be carried out. Based on many years of expertise in solutions for the measurement, control and regulation technology, Müller Industrie-Elektronik is working out a comprehensive solution for the task at hand by selecting the appropriate measurement technology from the control and regulation of processes to the evaluating system for a perfectly coordinated overall process.

As an add-on, Müller Industrie-Elektronik takes the intelligent networking of the individual measuring components as a service, including the programming of the process controller UPPC, demand-adapted to the customers‘ requirements. Thus, for example, an easy-to-use control system for sub-processes can be designed individually.

Programming towards intelligent Networking:

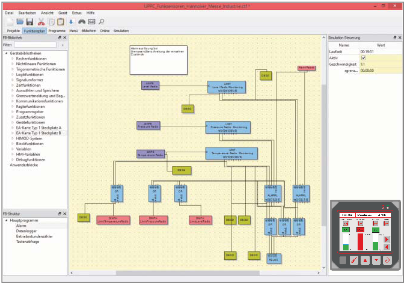

• Programming with function blocks
• Drag & Drop
• Reducing the programming effort
• PLC programming not required
• High time saving compared to PLC programming

Features:

• Supply voltage: 100…240 V AC/24 V DC
• Sensor supply: 18 VDC / 45 mA
• Power consumption:
  max. 350 mA (24 V DC)
• CPU:Cortex A8, 600 MHz … 1 GHz
• Interfaces: USB-ports
  Back: 1 × USB 2.0 Host (Type A)
  Front: 1 × Mini-USB 2.0 Device (Type B), galvanically isolated
• Slots: 1 × for communication card; 2 × for I/O-cards
• Relay: 4 potential-free relay outputs, changeover contacts (230 V AC / 5A; 24 V DC / 5A)
• Memory:  internal mass memory (4 GByte); Micro SD-Karte;     DDR2 (64 MByte); Flash (128 MByte); MRAM (128 kByte)
• Real-time clock power failure-buffered
• Display / Controls: TFT with backlight, 320×240 pixel QVGA, resistive touch screen; 3.5“;         4 freely assignable keys;
  2 programmable LEDs for status indications
• Housing: witch panel mounting housing
  Dimensions (W×H×D) 98 × 98 × 115 mm (without connectors)
  98 × 98 × 130 mm (with connectors)
• Protection type: IP 65 on the front, IP 20 rest of housing
