All-in-one datalogger DL-Toolbox 4.0

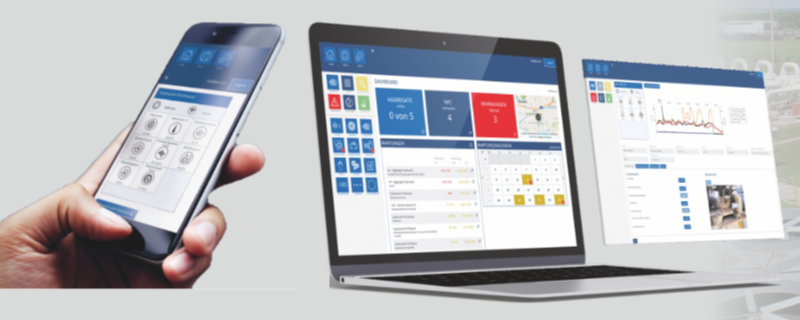

The DL-ToolBox 4.0 from Mülller IE is the suitable tool for remote monitoring of gensets and plants. Using a web app and software, machine data is digitized and monitored, thereby reducing operating and maintenance costs. Remote diagnosis is possible using intuitive evaluation software on smartphone, PC and data cloud.

download PDF

6 People watching this product now!
SKU: DL-Toolbox 4.0 Categories: ,
Description

Description

Technical Features

  • Sensor input: 8 x analogue 4…20 mA, 2 x digital, configurable as counter
  • Sensor signal: temperature / vibration / speed / level / differential pressure / torque / humidity / force / position / operating hours and switching times / all physical variables
  • Compatible with all 4-20 mA industrial sensors
  • Output: 3 x digital (normally closed / normally open)dl toolbox40 datalogger from Mueller Industrie Elektronik for remote maintenance monitoring
  • Supply: 24 VDC
  • Temperature range: -30…+60 °C
  • Protection class: IP 66/67
  • Interfaces: USB / LAN
  • Options: 2G/4G mobile radio / Bluetooth/WLAN / GPS positioning / NFC
  • Web App and evaluation software for remote monitoring and evaluation

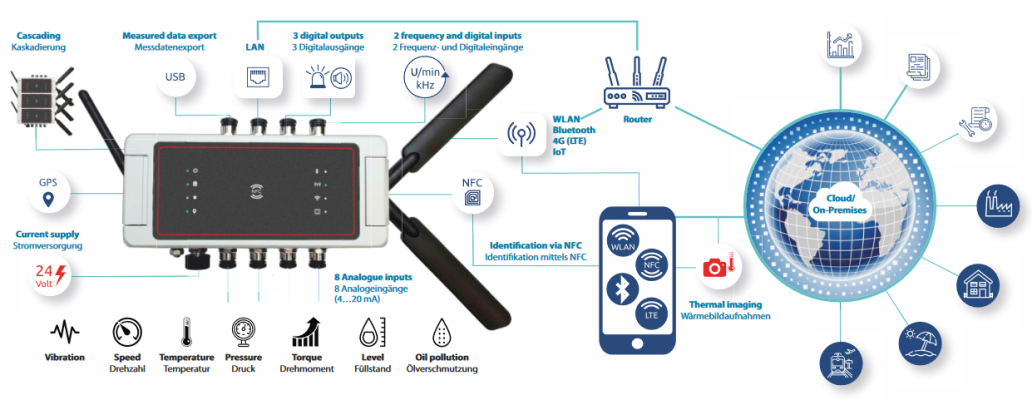

dl toolbox40 applications remote monitoring datalogger Müller Industrie Elektronik

About Muller IE
More Information
controller-logger
inclination
pressure
humidity
level
flow
modular compact sensors
IOlinksensor
Shipyard at night
Shipyard at night
ofst

    Products & Features

    Müller Industrie Elektronik GmbH from Germany is specializing in modular and compact sensors for customized hardware and electronic solutions, IO Link, digital displays, OEM manufacturing, digital displays, product certifications, etc.

    • Sensors & Transmitters: Temperature, Force, Pressure, Level, Flow, Humidity, and Inclination measurement.
    • MI-Series (Modular Inline Sensors): High-density, miniature housing designed for, restricted spaces in machinery, plant engineering, and vehicle construction.
    • Digital Indicators
    • OEM Electronics & IO-Link: Customized, low-cost sensor boards and IO-Link-capable products for industrial automation.
    • Safety Technology: SMM-HD-SIL1-IO: Strain gauge bridge measuring amplifier with SIL1/PLc safety

    Key Benefits

    • Broad Sensor Portfolio
    • Modular Product Design
    • Robust & Certified Technology: IECEx, EHEDG, SIL3, TÃœV-certified
    • Advanced Digital Indicators: full graphic TFT (LCD) displays and universal measuring instruments
    • In-house Development & Production: made in Germany
