Ensim

Liquid warning detector Watersens

Watersens is used in order to detect the flood in advance and to take precaution at homes and offices. It can be powered by 9V. battery. It can be ensured to stop any water leakage by commanding relay output to a solenoid valve. It can avail people around it to take precautions by attracting their attention through a siren.

download pdf datasheet

2 People watching this product now!
SKU: Watersens Categories: ,
Description

Description

watersensboxELG magnetic by-pass level indicators are assembled anto external or upper surfaces of tank, boiler ang storage tanks. lt enables to see level easily and with high accuracy. lt is more economic than other measurement systems with mechanical method and it provides advantages for user with various assembly forms together with easy of assembly and maintenance.

Application Fields:

Operation rooms, computer rooms, warehouses, generator rooms,
compressor rooms, air conditioner rooms, baths, kitchens and
all locations having possibility of flood, fire alarm systems etc

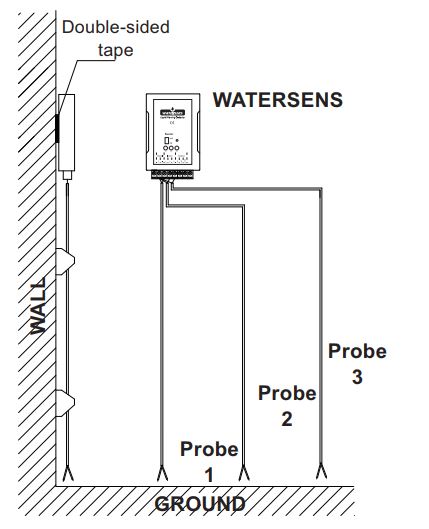

Advantages:watersensapp

  • Easy to assembly
  • Long life battery
  • Can be connected to the panel
  • Economical

Specifications:

Power Supply : 9VDC Battery or/and 24 VDC
Output :1A/125 VAC NO/NC Relay + Horn
Display : 3 pcs Red LED
Button : On/Off for Horn
Electrical Connection : 3 x 0,22mm2 Cable
Sensor : 1 m. Conductive Cable
             ( 3 pcs sensor input )
Housing : ABS , Black colour
Weight : 175 g
