Magnetic Level Indicator ELG

ELG magnetic by-pass level indicators measure the liquid level by a float sensor with a magnet that turns the flaps on an indicating rail (top, bottom or side assembly). No electrical power needed. Options for high pressure (100 bar) and temperature (350°C) as well as aggressive media (PTFE lining). They can be supported with a transmitter and switch extensions.

download pdf datasheet

6 People watching this product now!
SKU: ELG Categories: , ,
Description

Description

Models:

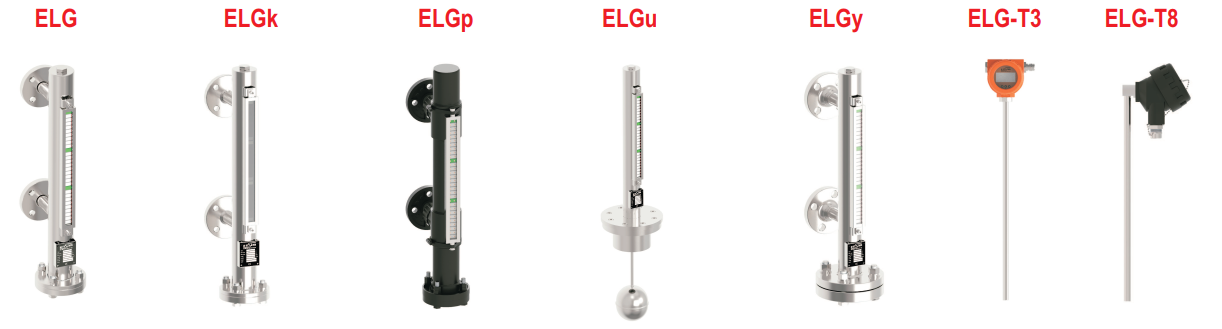

 ELG magnetic level gauge models Ensim - Lonca

Working Principle:

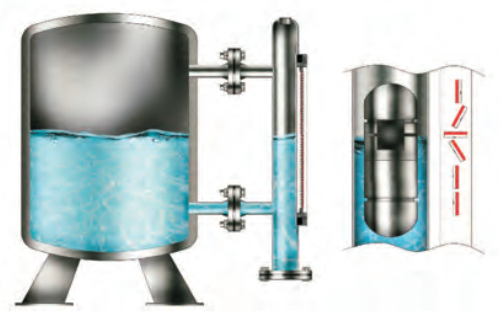

Liquid levels are the same in the main body of tank and level indicator. The movement of the gravity specific float will turn the 2 color flaps of the indicator rail to indicate the level.

Application Fields:Ensim ELG magnetic by-pass level indicators are mechanical indicators that do not require external electrical supply with a max pressure of 100 bar and temperature 350°C. They can be supported with a transmitter and switch extensions.

  • Wastewater systems
  • Chemical tanks for aggressive, corrosive media,
  • Oil tanks, Oil boilers, Fuel oil / Gasoline / LPG tanks
  • Natural gas pressure reduction system
  • Steam boilers, Hot water boilers
  • High pressure and temperature tanks

Advantages:

  • Clear visual monitoring and control
  • Easy installation and maintenance
  • Material options, (SS, Titanium, PVC)
  • Output options for monitoring and alarm

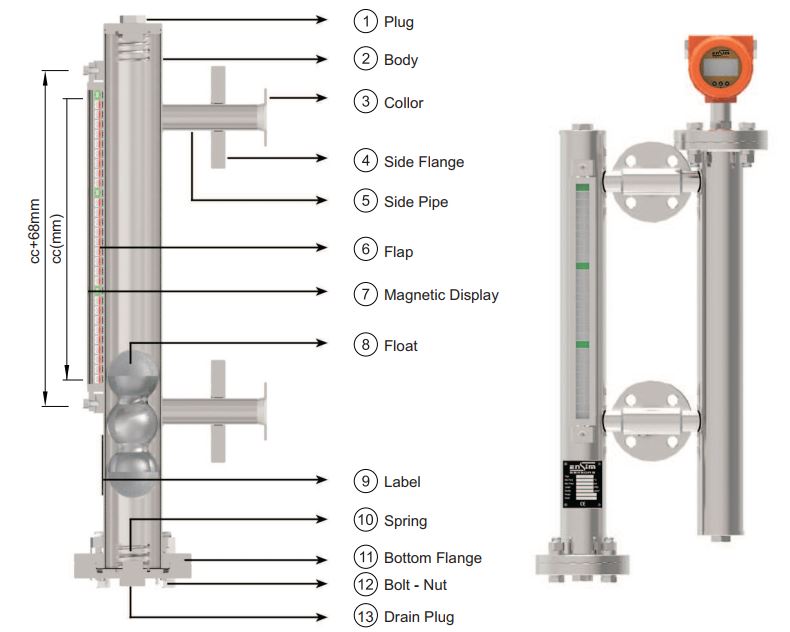

Specifications: Ensim ELG magnetic by-pass level indicators are mechanical indicators that do not require external electrical supply with a max pressure of 100 bar and temperature 350°C. They can be supported with a transmitter and switch extensions.

Magnetic Display sequential array of magnet sensitive flaps in the aluminium profile
Max.Working Pressure 16 bar, 25 bar, 40 bar, 100 bar
Max.Working Temperature 180 °C, Opt. 350 °C
Top / Bottom / Side DN 32 / PN 16, 304 St.St. Opt.316 Stainless Steel
Flange Ø 140 / PN 40 , 304 St.St. Opt.316 Stainless Steel
Ø 195 / PN 100 , 304 St.St. Opt.316 Stainless Steel
Body Ø 60.3 x 1,5 / 2 / 3 / 3,5 mm,
304 St.St. Opt. 316 Stainless Steel
Ø 63 x 3 mm, PVC
Ø 63 x 2 mm, Titanium
Seal Material Klingrid Opt. PTFE , Graphite
Side Pipe Material 304 St.St.
Opt. 316 St.St. / PVC
Connection Flange DN 20 / PN 16, Carbon Steel
Opt. 304 / 3016 St.St. / PVC / Titanium
Drain Screw Material 1/2 ” BSP
304 / 316 St.St.
Bolt / Nut / Washer M 12 x 45 mm / M 16 x 70 mm 304 Stainless Steel
Optional Magnetic Contact
Analog Output , Scale , Drain Valve
Liquid Level Relay , Local Digital Display
Heating Jacket, Special Design
