Float Level Transmitter EX proof DxELStx

DX-ELStx level transmitters are used for tank levels and for controls.
The float moves according to the liquid in the pipe. The magnet in the float triggers electrical signals in the reed switch.

download pdf datasheet

3 People watching this product now!
SKU: dxELStx Categories: , , ,
Description

Description

Product Specifications:

ex

Working Temperature (Tp):Max. 100C
Ambient Humidity:0-98 %Rh (Non-condensing)
Ambient Temperature (Ta):(-) 20….(+)60C
Material/Connection:304 St.st. (Std) Opt. 316 St.st., Aliminum
Housing:Aliminium Injection Molding-AlSi12Fe (Std)
Black (RAL 9005)
Float:316 St.st. (Std) Opt. PU,PP
Pipe:304 St.st. (Std.) Opt. 316 St.st. , Brass
Connection:2″BSP (Std) Opt.sel-ectable from Table.
Float Type:S40A (Std.), sel-ectable from Table.
Number of Float:1 (Std.)
Stem Length:Max. 2500 mm (Thread Included)
Electrical Connection:Terminals
Cable and Plug Entry:M20x1,5 (Std)
Output:4-20 mA Std. Two Wire Opt. 4-20mA, 0-20mA, 0-10V Three Wire, Ohm
Supply Voltage:12…32 VDC
Protection Class:IP 66 (EN60529)

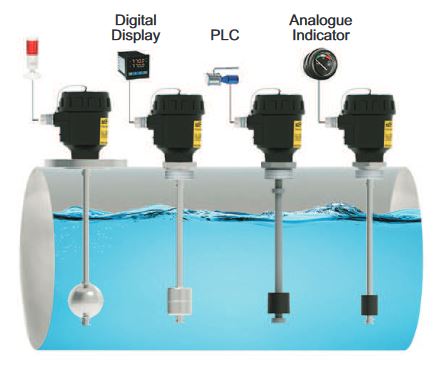

Certifications and Approvals:CE Declarations, EMC, LDV, ATEXdxELStxapplication



Application Fields:

Tank level measurement and control,boiler control,tank control.

Yacht water level control, sewage level control.

Hydraulic oil tank level measurement and control.
