Limatherm

Humidity & temperature transmitter RHT Climate WM/DM

RHT Climate Transmitters Wall Mount (WM) and Duct Mount (DM) models incorporate high-precision, stable sensors for measuring temperature and relative humidity and calculate the value of the following psychrometric properties:
• Dew Point Temperature
• Wet Bulb Temperature
• Absolute Humidity
• Frost Point Temperature
• Specific Enthalpy
• Partial Vapor Pressure
• Mixture Ratio
Configuration via a USB or RS485 interface (Modbus RTU) or NXperience software.

download pdf datasheet

1 People watching this product now!
SKU: RHT Climate WM/DM Categories: ,
Description

Description

Characteristic

  • temperature and humidity measurement
  • high accurate and measuring stability
  • wall or duct assembly
  • backlit display LCD 4½
  • ABS housing, IP65

Technical data

  • temperature: (-40 ÷ 100) °C (DM)
  • temperature: (-40 ÷ 60) °C (WM)
  • humidity: (0 ÷ 100) % RH (without condensation)
  • dew point: (-90 ÷ 100) °C
  • two analog outputs (0 ÷ 10) V or (4 ÷ 20) mA configured using dedicated software or manual keyboard
  • two digital alarm outputs AL1, AL2 with alarm or control functions
  • opt RS485; LCD display with backlight or audible signal

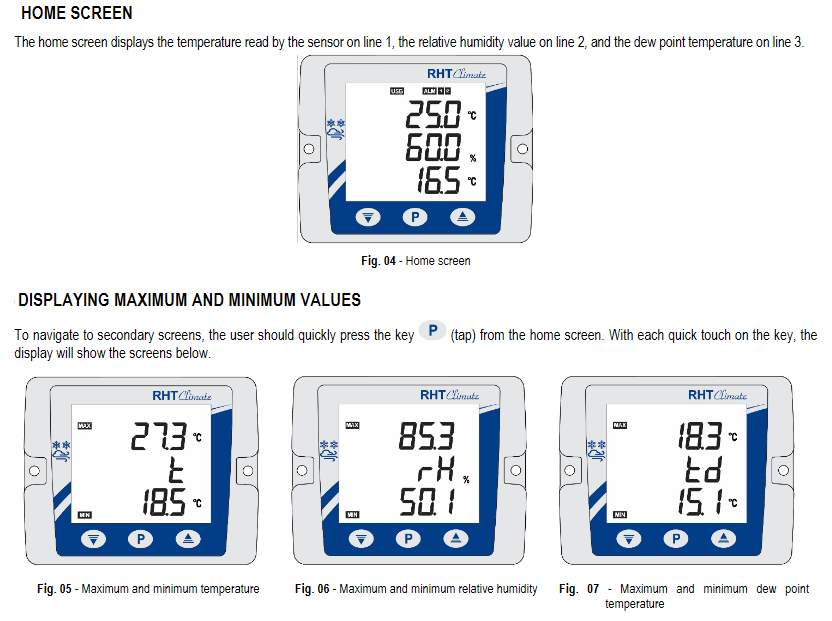

Display Indications

 RHT Display Options Description Limatherm

The following other properties can be calculated and displayed:

• Dew Point Temperature
• Wet Bulb Temperature
• Absolute Humidity
• Frost Point Temperature
• Specific Enthalpy
• Partial Vapor Pressure
• Mixture Ratio





About Limatherm
More Information
limathermexproof
limathermmineralinsulated
limathermhightemperature
limathermfoodpharma
cablesensor
Limathermaccessories
limathermapp2chemical
limathermchemical
Limathermhvac

    Products & Features

    Limatherm specializes in industrial temperature measurement and control solutions. Core Products & Services are

    • Temperature Sensors: wired and head sensors, mineral-insulated (sheathed) RTD and Thermocouples
    • Hazardous Area Solutions: intrinsically safe (Exia) and flameproof (Exd)
    • Accredited Laboratory: acc. to ISO/IEC 17025 standard
    • High-Temperature Patent:  up to 2300°C
    • Material Diversity: acid-resistant steel, borosilicate glass, ceramics (e.g., Hexoloy)

    Key Benefits

    • Reliability in Extreme Environments: Suitable for high-temperature and harsh conditions (e.g., molten metal, acidic environments).
    • Adaptability: Suitable for diverse industries such as metallurgy, chemical processing, and food production.
    • Easy Installation: Features like replaceable inserts and flexible mineral-insulated cables reduce maintenance time and cost.
