high precision multi turn electronic actuators

The Tensor high precision multi-turn actuator series from Aris, Germany

• long life precision actuator, compact, low power consumption

• control electronics with wear-free, absolute position detection and regulated BLDC motor
• short actuation times
• adjustable torque and and speed values (from 1 s/90° to 500 s/90°)

The precision drive with wide range power supply, wear-free absolute position detection and high control accuracy. Your entry to Industry 4.0

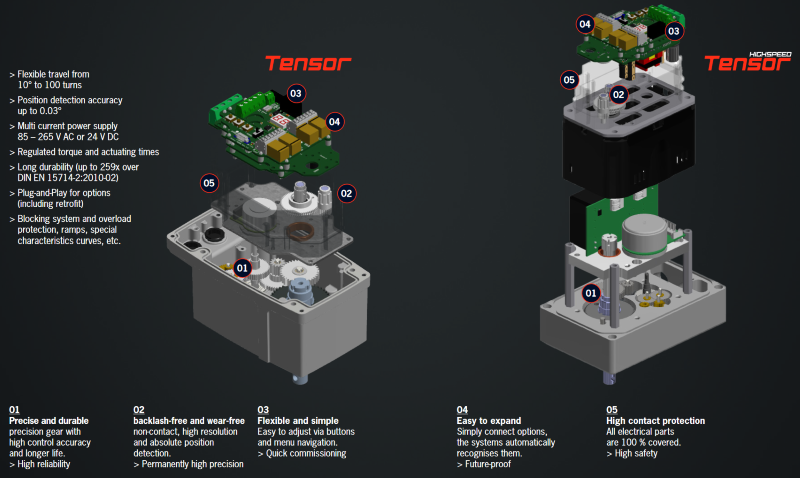

With the series Tensor ARIS offers an innovative generation of electronically controlled actuators. The Tensor is based on a low-backlash precision gear in combination with a brushless DC motor. The Tensor´s complete mechanical shut-off system has been replaced by a wear-free, non-contact position detection, which is based on the Hall effect. This sensor technology was developed many years ago for use in the automotive industry and has proved extremely robust, wide temperature range and high reliability.
