Syphon

Description

DESCRIPTION:

SYPHONS ARE USED MAINLY TO PROTECT PRESSURE INSTRUMENTS, GAUGES, SWITCHES AND TRANSMITTERS DIRECTLY COMING IN CONTACT WITH HIGH — TEMPERATURE, PROCESS FLUIDS OR VAPOURS. THESE ARE MOUNTED BETWEEN PROCESS AND PRESSURE INSTRUMENT. THEY REDUCE PROCESS PULSATION AND GENERATE COOLING EFFECT TO SAVE THE INSTRUMENT.

SPECIAL FEATURES:
PIGTAIL, COIL AND “[” TYPE SHAPES MAXIMUM TEMPERATURE UP TO 400 °C NOMINAL PRESSURE UP TO 160 bar TIG WELDED & HYDRO TESTED MADE WITH SEAMLESS PIPESfor NPT Type)

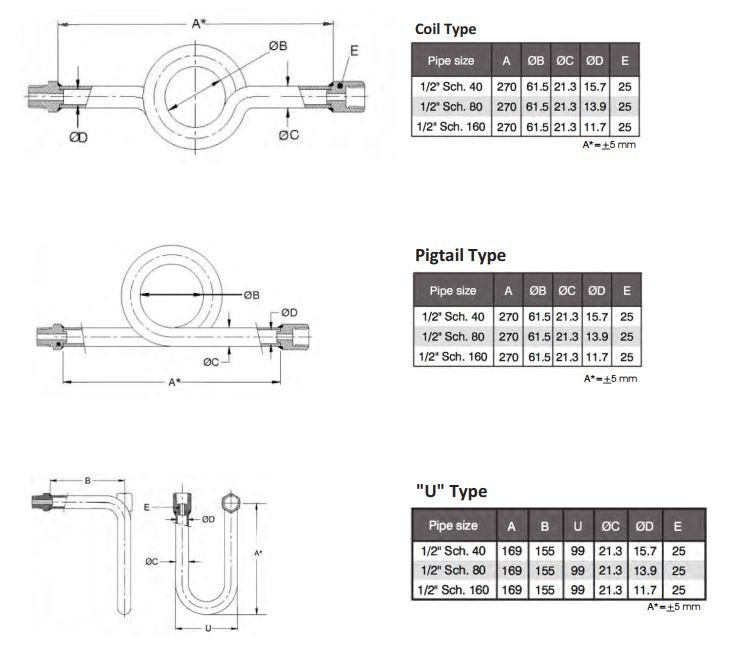

TYPES:
