Headsensor with replaceable measuring insert

Description

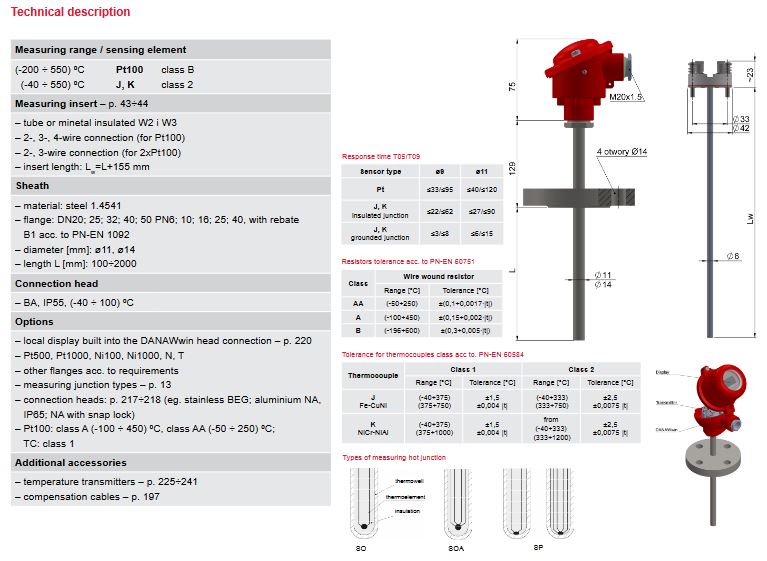

Headsensor Technical Description (Example)

Examples of Temperature head sensors with replaceable measuring insert

TOPGN-11, TTKGN-11, TTJGN-11

– Temperature range up to 550°C

– Sensing element: Pt100, Pt500, Pt1000, J, K

– Acid resistant steel thermowell: 1.4541

– Process connection: M20x1,5; G1/2”

– Connection head type BA (IP55)

– Exi or Exd version possible

– Measuring insert length Lw=L+155 mm

– Thermowell length: 50÷2000 mm

– Thermowell standard diameter: O9, O11 mm

TOPP-11, TTKP-11, TTJP-11

– Temperature range up to 900°C

– Sensing element: Pt100, Pt500, Pt1000, J, K

– Steel thermowell: 1.4541, 1.4841, 1.4762

– Connection head type BA (IP55)

– Exi or Exd version possible

– Measuring insert length Lw=L+25 mm

– Thermowell length: 50÷2000 mm

– Thermowell standard diameter: O9, O12, O15 mm

TOPGB-11, TTKGB-11, TTJGB-11

– Temperature range up to 150°C

– Sensing element: Pt100, Pt500, Pt1000, J, K

– Acid resistant steel thermowell: 1.4541

– Process connection: M20x1,5; G1/2”

– Connection head type BA (IP55)

– Exi or Exd version possible

– Measuring insert length Lw=L+43 mm

– Thermowell length: 50÷2000 mm

– Thermowell standard diameter: O9 mm

TTKU-11, TTJU-11

– Temperature range up to 1200 °C

– Sensing element: J, K

– Heat resistant steel thermowell: 15Cr25T, 1.4841, 1.4762

– Connection head type AA (IP53)

– Measuring insert length Lw=L+35 mm

– Thermowell length: 300÷3000 mm

– Thermowell standard diameter: O22 mm
