GMS Control Monitoring & Tracking EBQ

The EBQ Control Monitoring and Tracking device for Relay Control and Warning

download pdf datasheet

2 People watching this product now!
SKU: EBQ Categories: ,
Description

Description

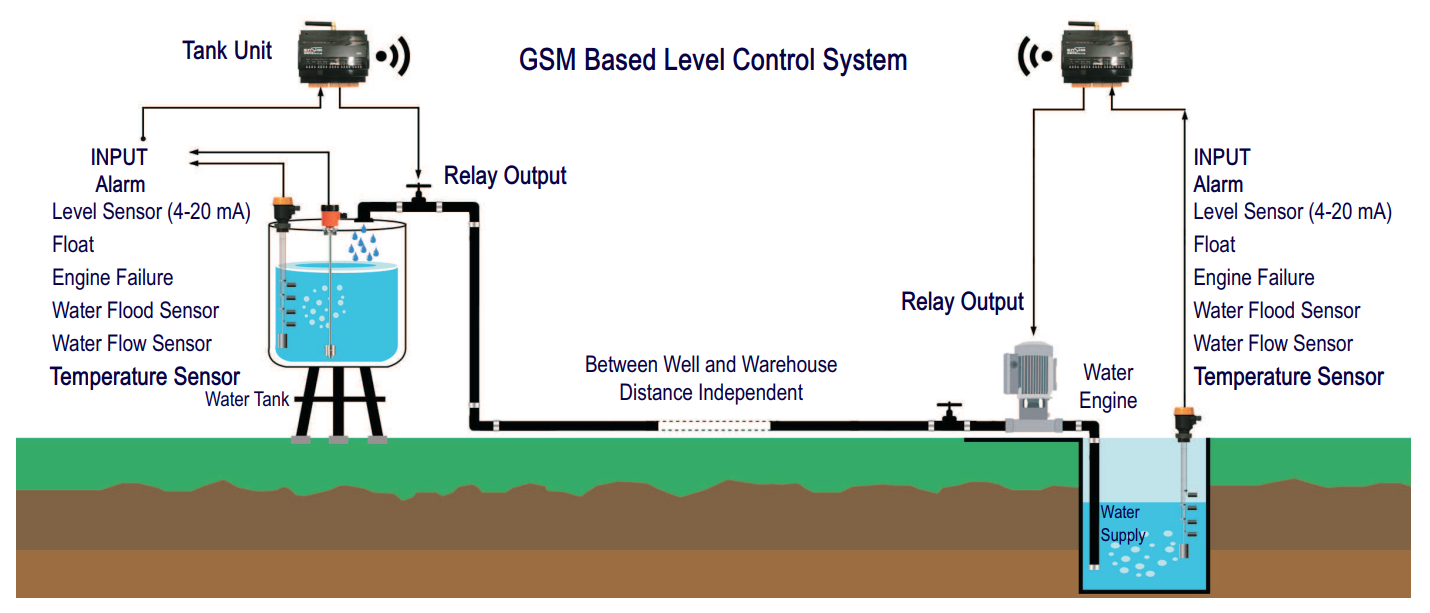

 GSMcontrol

Technical Specifications:

Model EBQ100
Power Need 2 VDC 1.5 A
Relay Output 8 Panasonic Relay (5 A  277 VAC / 3 A 30 VDC)
Inputs 4 (Dry Contact)
LCD 2 x 16 LCD
Buzzer Yes
Call Notification 10 Number
SMS Notification 10 Number
Email Notification 3 Mail Address (No SSL)
Antenna SMA Connector (3 m. GSM Antenna included)
Terminal Plug-in Terminal (3.81 mm)
Enclosure Rail Type Plastic Enclosure
  Also suitable for wall mounth
  157 mm x 90 mm x 60 mm

Model EBQ103
Power Need 2 VDC 1.5 A
Relay Output 2 Panasonic Relay (5 A 277 VAC / 3 A  30 VDC)
Inputs 3 (Relay Contact)
Analog Sensor 2 Analog Input (1 x 4-20 mA, 1x 10K NTC Temp Input
Buzzer No
Call Notification 10 Number
SMS Notification 10 Number
Email Notification 10 Mail Address
Antenna SMA Connector (3 m. GSM Antenna included)
Terminal Plug-in Terminal (3.81 mm)
Enclosure Rail Type Plastic Enclosure
  Also suitable for wall mounth
  110 mm x 90 mm x 60 mm
