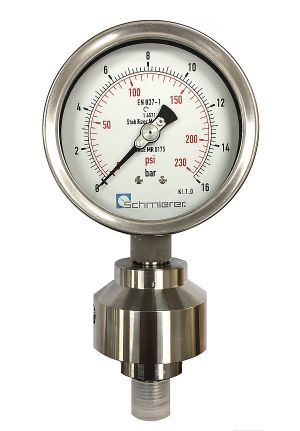

Pressure Gauge with Stabilizer Movement

The SRU25 fully stainless steel pressure gauge is equiped with an inbuilt silicon jelly stabilizer movement for mechanical dampening against pressure spikes, vibrations, etc.

• stable and reliable reading by a specially designed movement part

• no oil leakage, no blurry display
• no glycerine oil filling or refilling required, low maintenance
• for high purity, F&B, Pharma: no risk of contamination of process media

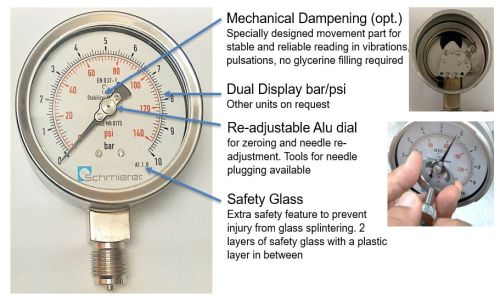

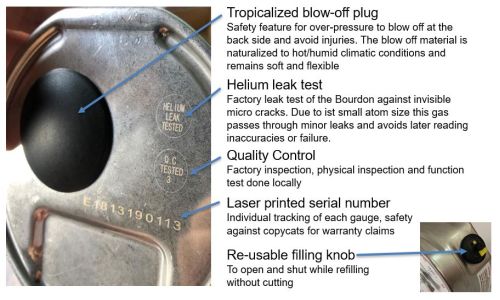

Advantages

SRU 25 Pressure Gauge Features:

• Rugged fully stainless steel construction:
  • Seamless tube bourdon, socket SS316L
  • NACE, TIG welding
  • Shatterproof 2 layer safety glass
  • Case, Bezel, Movement SS304
  • NBR nitrile rubber gasket for oil resistance, IP 66 protected
• Pressure range from -1 to 15 bar, 0 – 100 bar (opt. up to 1600 bar)
• Temperature compensated Neopren Rubber Blow Out Disc
• Dual display bar/psi
• Zero re-adjustable pointer on white aluminium dial
• Tropicalized blow-off plug for overpressure
• QC: factory Helium leak test of bourdon
• QC: physical inspection, function test in Malaysia
• Laser printed serial number for tracking and warranty claims
• opt. with threaded or flanged diaphragm seal (-1 to 400 bar)

PDF datasheet
