Sewage gas / Biogas quantity measurement in wastewater treatment
Measuring flow rate at the digestion tower’s exit and in before the combined heat and power plant
Safe
Safe measurements even in hazardous areas
Economical
Once installed, the sensor hardly needs any maintenance
Robust
Our vortex sensor is especially suited for condensate-laden fermentation gas that can also be particle-laden
Application
Anaerobic degradation processes happen in the digestion tower during wastewater treatment in a sewage plant, causing biogas (also sewage or fermentation gas) to arise, which mainly consists of methane and carbon dioxide.Â
Exact measuring of biogas quantity is one oft he most challenging applications in flow measuring technology. Biogas is very moist, tends to condensate and is particle-laden. Its composition varies and is quite aggressive. Combined with air it can turn into explosive mixtures which is why it’s important to take according safety measures. Applied instruments have to be certified for the defined ex zone

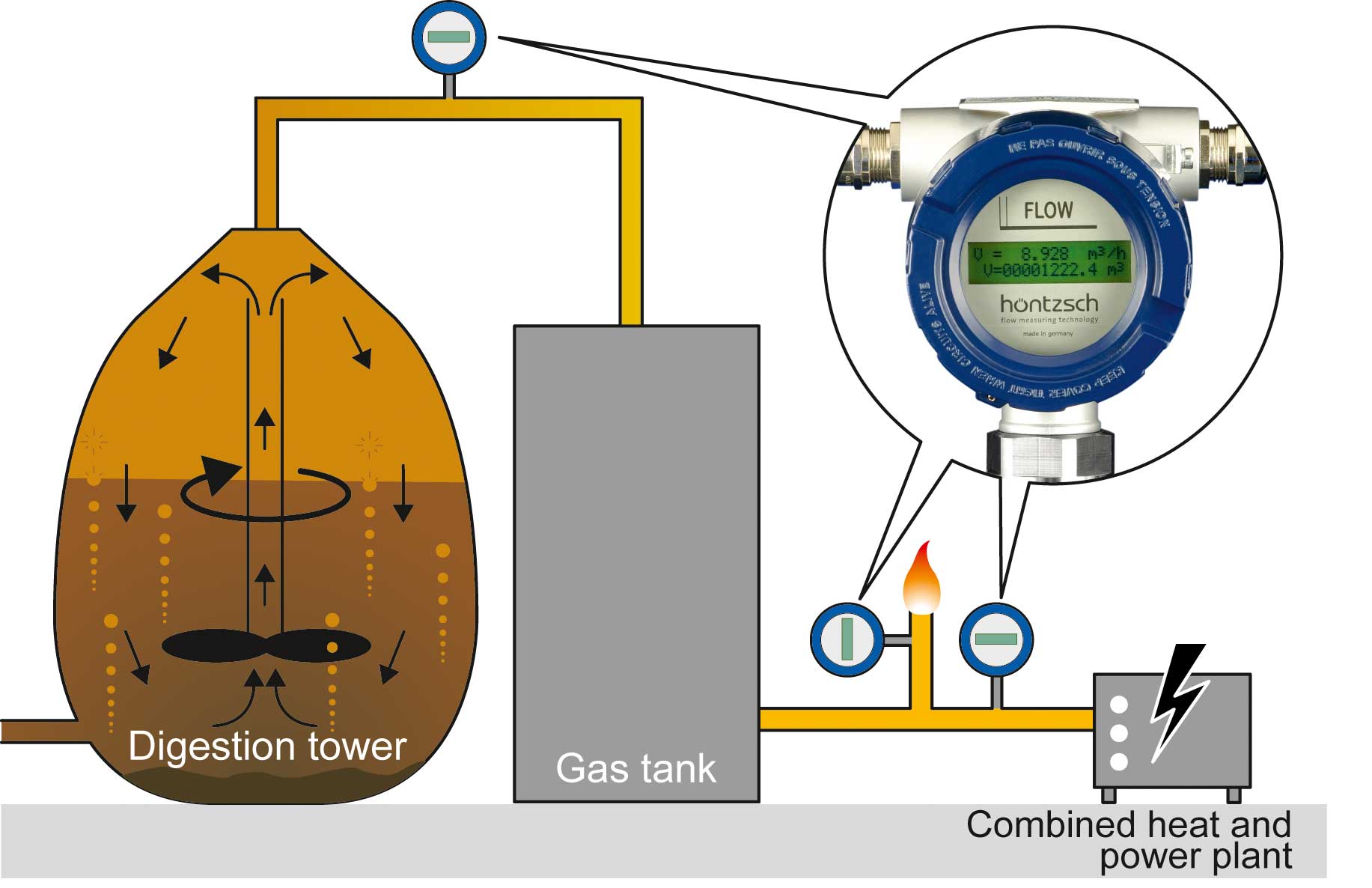

Fermentation gas is measured directly at the digestion tower’s exit and on the other side before the combined heat and power plant. Flow rate towards the flare is also partly measured.
Process data
- Measuring task: flow velocity for determining flow rate

- Measuring point: directly at the digestion tower’s exit and on the other side before the combined heat and power plant and before the flare
- Measuring range: Up to 40 m/s
- Process pressure: atmospheric
- Process environment: ATEX Zone 1
- Process: ATEX Zone 0
Recommended Hoentzsch Vortex products

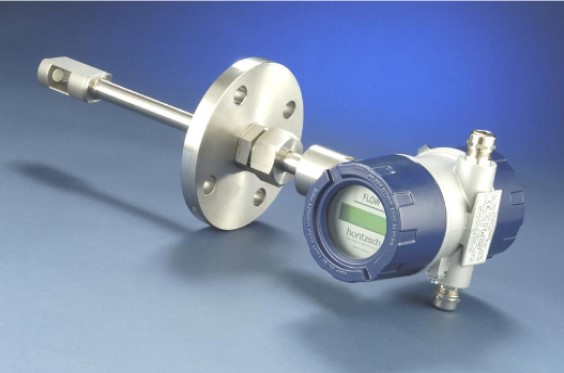

Vortex probe VA40…ZG8 Ex-d/ATEX: Standard compact unit for hazardous applications, variable insertion depth

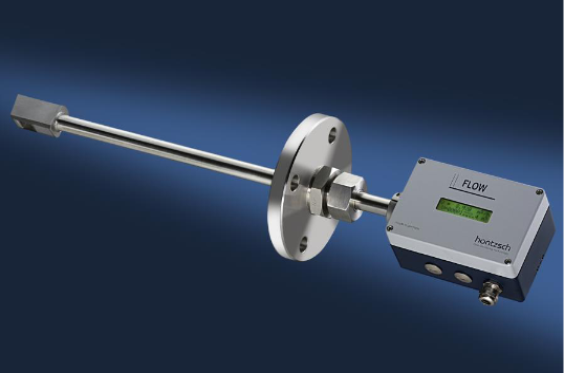

Vortex probe VA40…ZG4 with separate Transducer: Variable insertion depth, wide selection of sensor material, max. +240 °C
