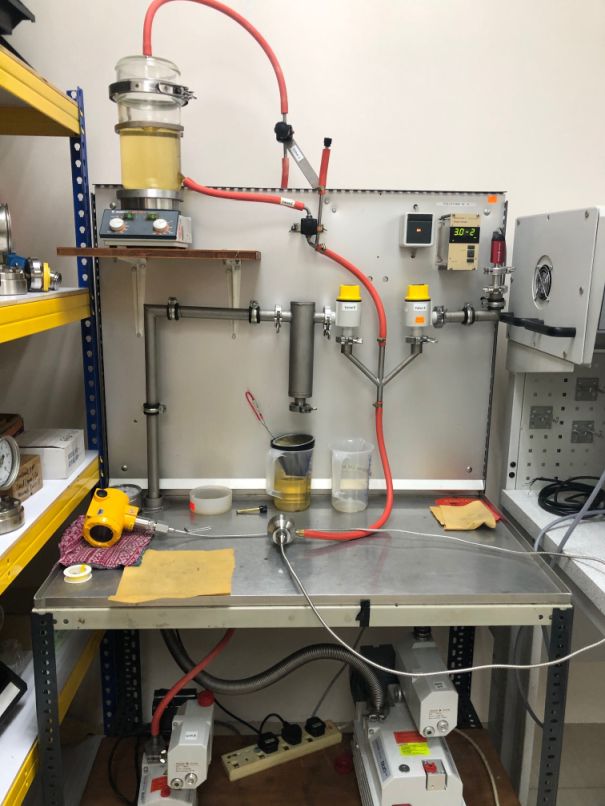

Diaphragm Seal Filling Station Shah Alam
With our Diaphragm Seal Filling Station in Shah Alam Schmierer SEA locally assembles standard and specialized diaphragm seals (DS) to a wide range of pressure instruments (transmitters, switches, gauges) from all major brands and manufacturers. This service offers cost-effective repair and reduces machine downtimes.
The seals assembled at the station are listed under diaphragm seals.
Diaphragm Seals are used for special chemical applications (contamination, aggressive, hazardous media), hygienic and sanitary production (food, pharma, solar) as well as high temperature and pressure processes.
Diaphragm Seals can be connected to
- new pressure transmitters, switches and gauges of locally available models and brands
- used pressure instruments with defect diaphragm seals.
The DS replacement saves cost and reduces the down time of machines and plants. It provides valuable information regarding the process which lead to better choice of diaphragm seal material for an increased lifetime.
How does a Diaphragm Seal Filling Station work?
Â
Diaphragm seals are directly mounted to Bourdon Tube gauges, pressure switches and transmitters or connected by a capillary filled with a silicon oil liquid. When pressure is applied to the diaphragm membrane the filling liquid is hydraulically transmitted to the sensing unit.
Contained trapped gases or air in the filling fluid will cause incorrect readings with rising temperatures. In the degassing process of a filling station a powerful vacuum pump extracts gases and moisture and creates a vacuum in the airspace of the capillary. The filling liquid is drawn into this space by the vacuum and then sealed in. The functionality and accuracy of the Diaphragm seal is tested and authorized by a certificate of factory filling and calibration.
Benefits
- Shorter delivery cycles:
delivery times of 4 weeks as compared to 3-4 months for orders of branded instruments with customized flanged DS - Modular setup:
a wide range of DS types can be attached to the instrument/manufacturer of your choice - Cost-effective repair:
savings up to 50% by replacing the damaged DS compared to a new transmitter unit - Reduced down times of machines and plants due to DS failure

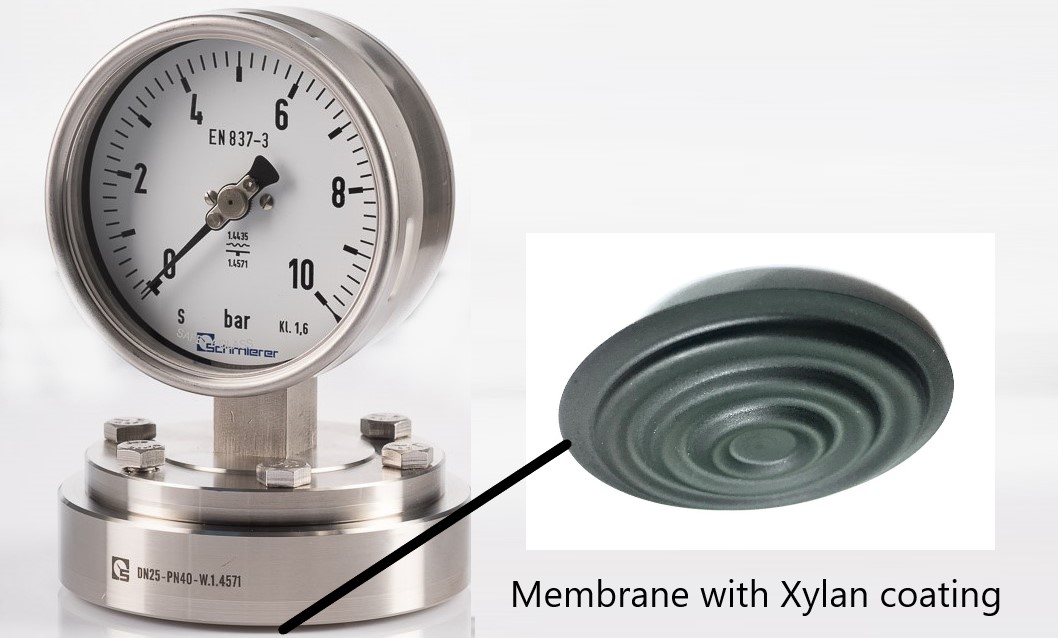

Analyzing the failure provides valuable information regarding the process which lead to better choice of diaphragm seal material for an increased lifetime.leads to a better choice of DS material, coating, etc.
