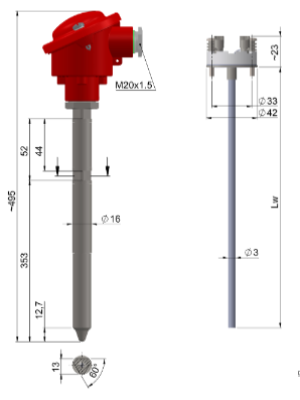

Rubber Mix Temperature Sensor

The Limatherm TTJU-45 or TTKU-45 rubber mix temperature sensor is mounted at the rubber mix door. A special narrowed tip enhances the sensor reaction time to temperature change. The tip is covered with a protective layer that increases abrasion resistance.A flexible,mineral insulated measuring insert is included inside the Thermowell. It can be replaced without the need to disassemble the whole sensor.

Specifications

•

  Temperature range: TC 40 – 300°C

• sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
• process connection with G1/2 or M20x1,5 thread
• connection head type BA IP55, – 40÷100ºC
• sheath material: acid-resistant steel 1.4541
• temperature transmitter can be mounted in a connection head
• measuring insert: pipe or mineral insulated version
