De-Carbonation & Carbonation

In stock

SKU: De-Carbonator
De-Carbonation & Carbonation download pdf datasheet
Quick view

DeAlcoholization of Wine and Beer

In stock

SKU: DeAlcoTec
DeAlcoholization of Wine and Beer download pdf datasheet
Quick view

Deltaflow C Gas Mass

In stock

SKU: Deltaflow C
The deltaflowC by systec Controls is an ultra-fast, multivariable gas mass flow meter that operates on the differential pressure (dp) principle. By integrating sensitive dp, pressure, and temperature sensors with a powerful microprocessor, it delivers precise mass flow signals up to 4,000 times per second. It is ideal for highly dynamic processes, pulsating compressed air, and automotive engine test benches.
  • Insertion Probe: Installed into pipes using weld-end flanges.
  • Venturi: Built as a contoured measuring tube for test bench or industrial
Quick view

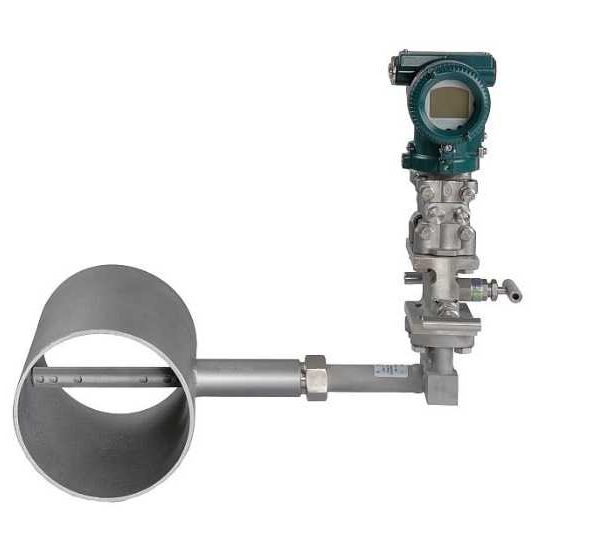

Deltaflow DF Pitot Tube

In stock

SKU: Deltaflow DF
The Deltaflow DF Pitot Tube by systec Controls is an advanced, averaging pitot tube designed for highly accurate, low-pressure loss flow measurement of gases, steam, and liquids.
  • Low pressure loss, therefore high energy saving potential
  • Simple installation, without disconnecting the pipework
  • Lower weight, even with large diameters
  • Very accurate (deltaflow from 0.4%)
  • High measuring dynamics, up to 1:30 depending on application
  • Insensitive to contamination, condensate, etc.
  • Low acquisition costs, even with large diameters

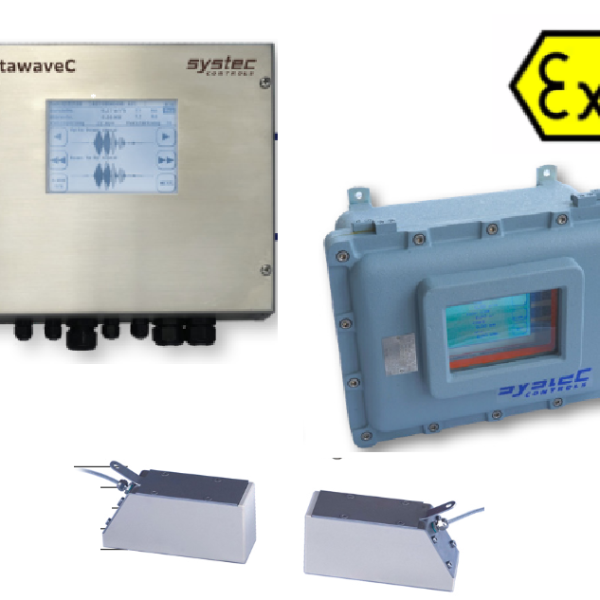

Deltawave C-F permanently mounted, explosion proof
Quick view

Deltawave C-F clamp on, ex proof

In stock

SKU: Deltawave D-F
Discover the deltawave C-F by Systec Controls. A permanent clamp-on ultrasonic flowmeter for liquids with zero pressure loss and no pipe cutting required. Transit Time technology.
Quick view

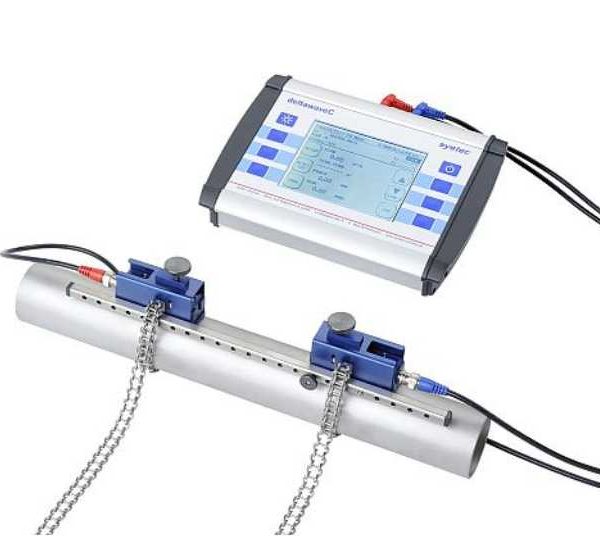

Deltawave C-P portable clamp on

In stock

SKU: Deltawave C-P
The deltawaveC-P by systec Controls is a universal, portable clamp-on ultrasonic flowmeter. It delivers precise, non-intrusive flow and thermal energy measurement for liquids in filled pipes. Operating with a built-in data logger and battery power, it eliminates pipe cutting and process downtime
  • Non-Invasive Setup: Straps entirely to the outside of the pipe with zero pressure loss or risk of leakage.
  • High-Precision Technology: Uses the digital ultrasonic transit-time method to log 50 to 150 measurements per second.
  • Versatile Application: Measures pipe diameters from DN10 to DN6000 and fluid temperatures up to 150°C (380°C with high-temp sensors).
  • Built-in Intelligence: Includes standard thermal energy/heat metering, an integrated data logger, and a fast "Quick Setup" parameterization tool.

Quick view

Deltawave CoG clamp-on for gases

In stock

SKU: Deltawave C-P-1
The deltawaveC-P by systec Controls is a universal, portable clamp-on ultrasonic flowmeter. It delivers precise, non-intrusive flow and thermal energy measurement for liquids in filled pipes. Operating with a built-in data logger and battery power, it eliminates pipe cutting and process downtime
  • Non-Invasive Setup: Straps entirely to the outside of the pipe with zero pressure loss or risk of leakage.
  • High-Precision Technology: Uses the digital ultrasonic transit-time method to log 50 to 150 measurements per second.
  • Versatile Application: Measures pipe diameters from DN10 to DN6000 and fluid temperatures up to 150°C (380°C with high-temp sensors).
  • Built-in Intelligence: Includes standard thermal energy/heat metering, an integrated data logger, and a fast "Quick Setup" parameterization tool.

Quick view

Deltawave SUF Gas Flowmeter

In stock

SKU: Deltawave SUV
The deltawaveSUF is a highly precise, clamp-on ultrasonic gas flow meter manufactured, designed to measure the flow rate and volume of gases in pipelines non-intrusively: accurate - maintenance free - save to bill
  • Non-Intrusive (Clamp-On): The ultrasonic sensors are strapped to the outside of the pipe. This means you do not need to cut or drill into the pipeline, resulting in zero pressure loss and no risk of leaks.
  • Transit-Time Method: It works by sending ultrasonic pulses with and against the direction of the gas flow. The difference in transit times is used to calculate the flow velocity and volume with extreme accuracy.
  • Autonomous Operation: It can run on its integrated battery for up to 5 years, making it highly versatile for remote areas without external power.
  • Integrated Data Logger: It records essential data such as pressure, temperature, volume, and standard volume flow.

Quick view

Density and Concentration Meter DIMF

In stock

SKU: DIMF
The liquid density meter of the DIMF series is used for continuous measurement of the density/concentration of liquids or liquid mixtures. The proven tuning fork principle guarantees a high acccuracy with very good long term stability.The robust design ensures reliable operation even under harsh operating conditions. download pdf datasheet
Quick view

Diaphragm Absolute Pressure Gauge PAGU 100

In stock

SKU: PAGU100
Diaphragm Absolute Pressure Gauge - stainless steel, NS 100, mbar Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles Contact Device Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Absolute Pressure Gauge PAGU 100

In stock

Diaphragm Absolute Pressure Gauge - stainless steel, NS 100, mbar Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles Contact Device Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Absolute Pressure Gauge PAGU 160

In stock

SKU: PAGU160
Diaphragm Absolute Pressure Gauge - stainless steel, NS 160, mbar Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles Contact Device Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Absolute Pressure Gauge PAGU 160

In stock

Diaphragm Absolute Pressure Gauge - stainless steel, NS 160, mbar Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles Contact Device Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Absolute Pressure Gauge PAKU 100

In stock

SKU: PAKU100
Diaphragm Absolute Pressure Gauge - stainless steel, NS 100 Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles, Contact Device, Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Absolute Pressure Gauge PAKU 100

In stock

Diaphragm Absolute Pressure Gauge - stainless steel, NS 100 Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles, Contact Device, Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Absolute Pressure Gauge PAKU 160

In stock

SKU: PAKU160
Diaphragm Absolute Pressure Gauge - stainless steel, NS 160 Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles, Contact Device, Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Absolute Pressure Gauge PAKU 160

In stock

Diaphragm Absolute Pressure Gauge - stainless steel, NS 160 Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles, Contact Device, Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Level Switch for solids ELZ

In stock

SKU: ELZ
ELZ level switches are the most economical method in measurement of level of bulk material for storage in open and non-pressure tanks. ELZ can check full, empty and loaded situations of powdered, dusty, corny, granular, grained bulk materials in the grain elevator. download pdf datasheet
Quick view

Diaphragm Pressure Gauge PGU 100

In stock

SKU: PGU100
Diaphragm Pressure Gauge - stainless steel, NS 100, mbar Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles, Contact Device, Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
Quick view

Diaphragm Pressure Gauge PGU 100

In stock

Diaphragm Pressure Gauge - stainless steel, NS 100, mbar Fully Stainless Steel Pressure Gauges (Bourdon & Socket SS316L, St. Steel Movement, Case SS304 Bayonet lock bezel SS304), safety glass), blow out disk, fillable Options: Manodamp® Movement with damped axles, Contact Device, Diaphragm Seal: specialized material and protective coatings or foils (SS, Tantalum, PTFE, others) Connection socket or flange: 316Ti, HC22, PP, PVDF, PVC or similar materials
