Portable cold chain temperature monitoring during transport and storage

The DL TagTemp USB Stick or creditcard sitze NFC data logger from Müller Industrie Elektronik, Germany monitors the cold chains for sensitive foods, vaccines, medicines, …

• Inbuilt temperature sensor
• monitoring of boxes, refrigerators,sensitive items, agriculture, etc.
• data analysis via free software on the computer or smartphone

Model Options

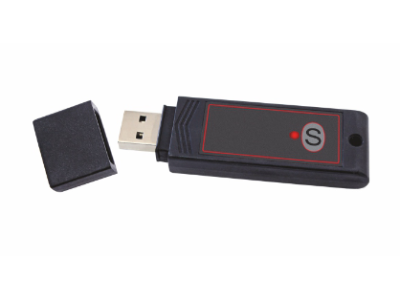

DL TagTemp Stick – USB	DL TagTemp NFC – Card
Measuring Range: -20°C to 70°C Temperature Accuracy: ± 0.5°C to 25°C ± 1.0°C span Resolution: 0.1°C Memory Capacity: 32000 records Acquisition Interval: Programmable 5 seconds to 18 hours Interface: USB Battery Runtime: 2 years (15 min interval) Housing: Polyamide Protection: IP 67	Measuring Range: -40°C to +100°C Temperature Accuracy: ± 1.0°C span Resulution: 0.1°C Memory Capacity: 4020 records Acquisition Interval: Programmable 1 min. to 4 hours Interface: RFID ISO 15693/NFC-V Battery Runtime: More than 2 years (30 min interval), non-repl. Housing: ABS + Polycarbonat Protection: IP 55 (IP 68 without LCD)

Applications

for monitoring of temperature regulations and cold chains:

• Food industry: storage, transport, preparation and presentation of food

• Laboratory and healthcare: Transport & storage of vaccines, blood and

• Logistics, warehousing: monitoring of humidity and temperature in the cold chain

• Livestock, horticulture, agriculture: animal husbandry, feed, storage, transport

Mueller IE dataloggger PDF brochure
