Digital Indicator with TFT Display – Universal Input – Standard Signals

Fully graphic TFT digital displays:

• triple display or universal input with 2 switching points
• 96×48 mm, 4 digits, IP65

• universal input: voltage, current, PT100(0), TC, frequency, rotational speed, counter
• selectable measuring/background colors: red, green, white, black orange
• USB port for PM tool configuration kit

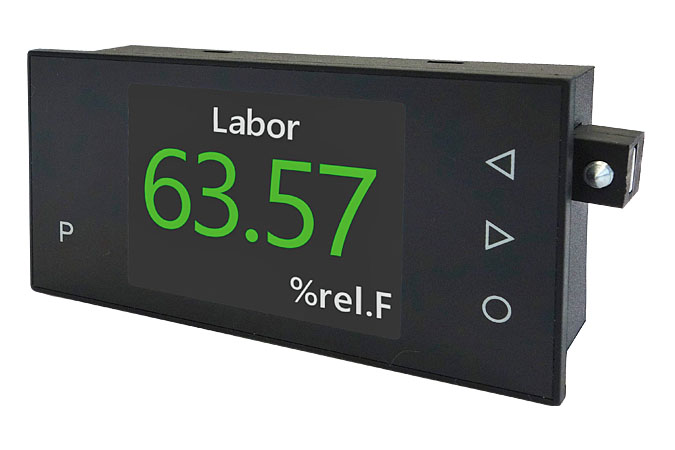

Digital indicators with universal measuring input – Type TFT1-11

Our 96×48 mm universal measuring devices from the TFT1 series record sensor signals and display them on fully graphic TFT displays. The TFT1-11 digital display can be used to operate a wide variety of sensors and display the corresponding physical values. If temperatures are to be measured via Pt1000, Pt100 or thermocouple, the temperature is displayed in the selectable °C or °F representation. For measuring inputs such as current/voltage, frequency or counter, the scaling and display can be freely selected in the display range from -1999…9999. The unit has 2 switching points that support various operating modes.

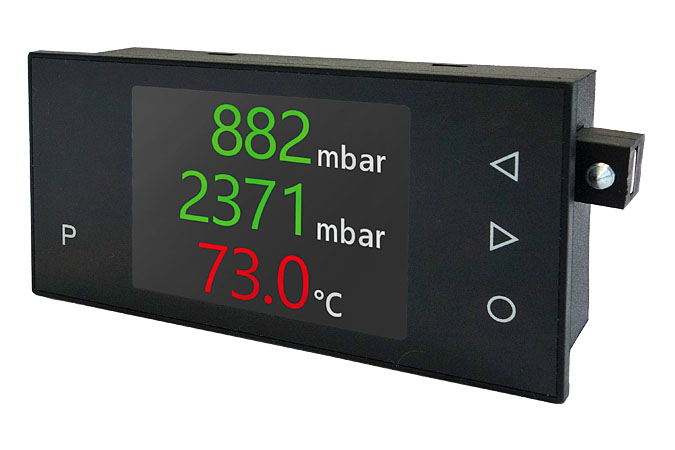

Digital indicator for standard signals: DC voltage/DC current – Type TFT1-13

The panel-mounted instrument of the TFT1-13 series has a 4-digit digital display on which the 3-fold measurement of voltage or current signals (not galvanically isolated) is possible. In addition, it has two switching points that are suitable for different operating modes and can be monitored both via a limit value with hysteresis and via a window contact with alarm range. The unit can be configured with the 4 front buttons (protection class IP65) or optionally with PC software. The multitude of available functions, such as the min/max value query, complete the modern device concept.
