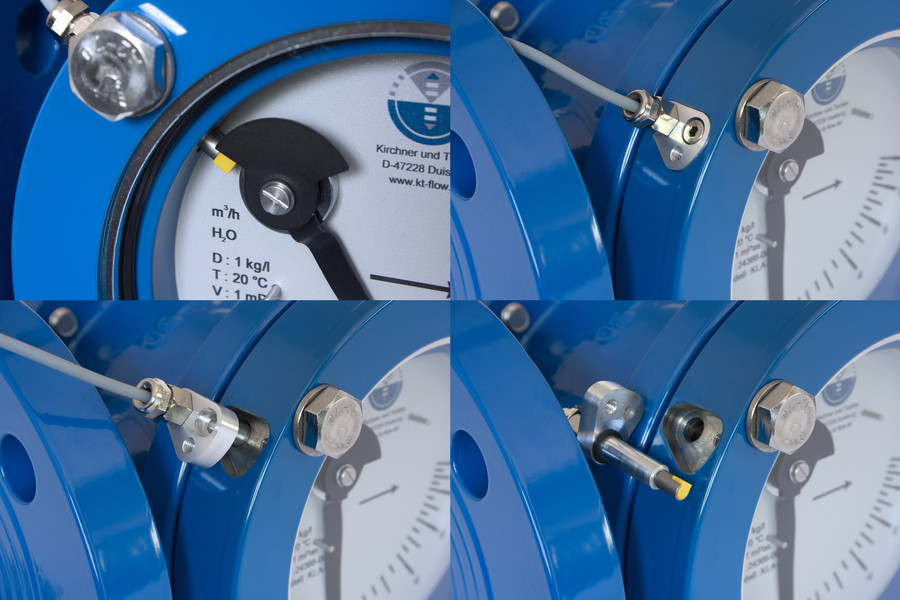

New limit switch for KLA flap type Flow Meter

The new type of limit switch reduces the size of the Kirchner KLA IK/IKS flap type flowmeter to the standard KLA size.

• available as 2-wire NAMUR inductive sensor and 3-wire inductive switch
• both sensor types can be used as normally open and normally closed contacts (standard version with 2 m cable)
• easy installation – switching point can be set without tools

The Kirchner Flap Type Flow Meters are used for large flow rates in different types of process media: water, air, liquids, gases, non-conductive fluids (mineral oils, alkalis, acids), high viscous liquids (slurries) and fluids or liquids with a high content of solidifying particles.The primary measuring element of the flow meters is a flap, which is deflected by the flow of the medium. The deflection angle is a direct indication of the flow.

• robust device for vertical and horizontal installation
• display: visible glass screen dial and/or magnetically coupled pointer dial
• easy to install, low maintenance
• largely independent of viscosity
• low pressure loss
• pipe size: DN 15 – 200, flow up to 300 m³/h
• optionally: choice of material and linings, ex proof design, 4-20 mA output
