All-in-one datalogger for remote monitoring of plants and gensets

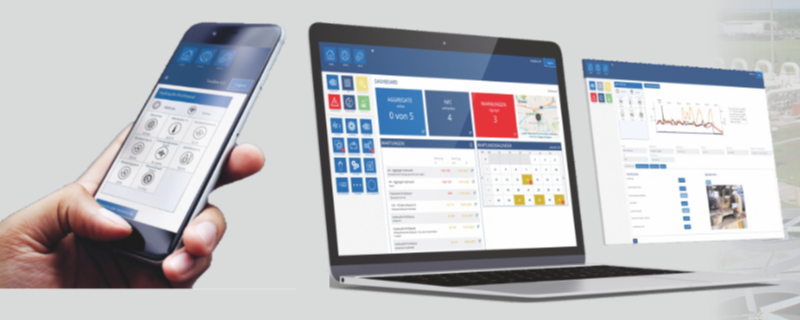

The DL–ToolBox 4.0 from Mülller IE is the suitable tool for remote monitoring of gensets and plants. Using a web app and software, machine data is digitised and monitored, thereby reducing operating and maintenance costs. Remote diagnosis is possible using intuitive evaluation software on smartphone, PCand data cloud.

Technical Features

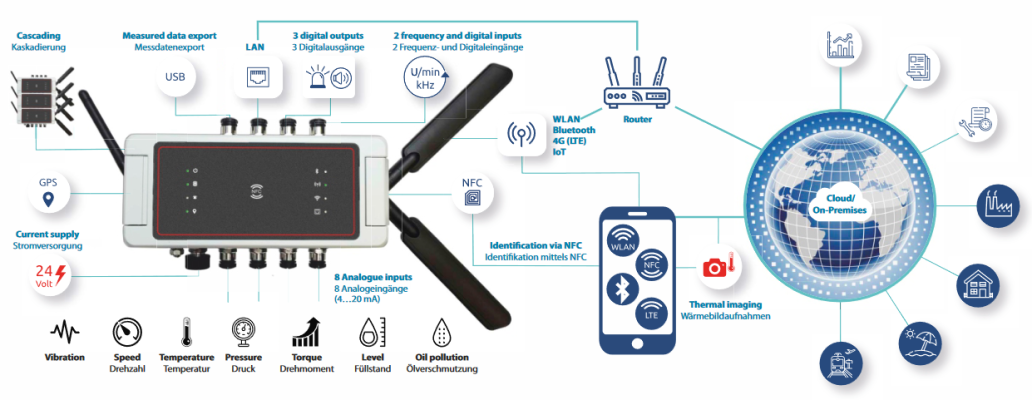

• Sensor input: 8 x analogue 4…20 mA, 2 x digital, configurable as counter
• Sensor signal: temperature / vibration / speed / level / differential pressure / torque / humidity / force / position / operating hours and switching times / all physical variables
• Compatible with all 4-20 mA industrial sensors
• Output: 3 x digital (normally closed / normally open)




• Supply: 24 VDC
• Temperature range: -30…+60 °C
• Protection class: IP 66/67
• Interfaces: USB / LAN
• Options: 2G/4G mobile radio / Bluetooth/WLAN / GPS positioning / NFC
• Web App and evaluation software for remote monitoring and evaluation
