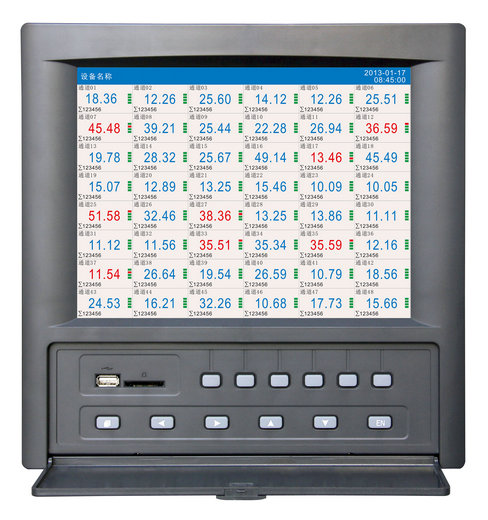

Universal Input Color Paperless Recorder

The universal input Paperless Recorder SSEA-PR with a 10.4 inch color LCD display, high speed processor with 0.2% signal accuracy and a variety of configuration options:

• simultaneous multi channel signal detection, recording, display and alarm, no jumper, configured by software
• up to 48 channels, upgrading option
• input signals: standard current, standard voltage, frequency, millivolt, thermocouple, RTD
• output options: sensor distribution, 36x relay alarm, transmitter, flow totalizer, etc.
• communication: RS232, RS485, Modbus RTU, Ethernet, SD card, U disk
• reports, historical data storage, on-site printing
• options for inbuilt micro printer, waterproof housing, IP65

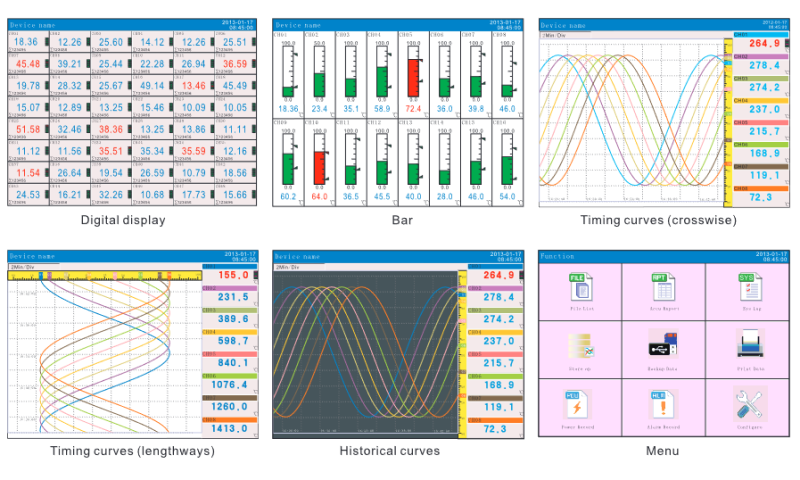

Display Options:

Input Channels:

8, 16, 24, 32, 40, 48 input channel cards, upgrade possible,measurement period: 1 sec.
