Exchangeable Measuring Inserts

Replaceable Measuring inserts for temperature sensors.
standard – mineral insulated – ceramic cover
terminal block or transmitter 4-20mA
RTC – TC – different diameters and stem length

view products
download pdf

2 People watching this product now!
Description

Description

Measuring insert in the pipe, rigid sheath is a replaceable element of  temperature sensors. Insert design enables its installation in the connection head and pressing insert tip to the bottom of the sensor thermowell.

download pdf datasheets

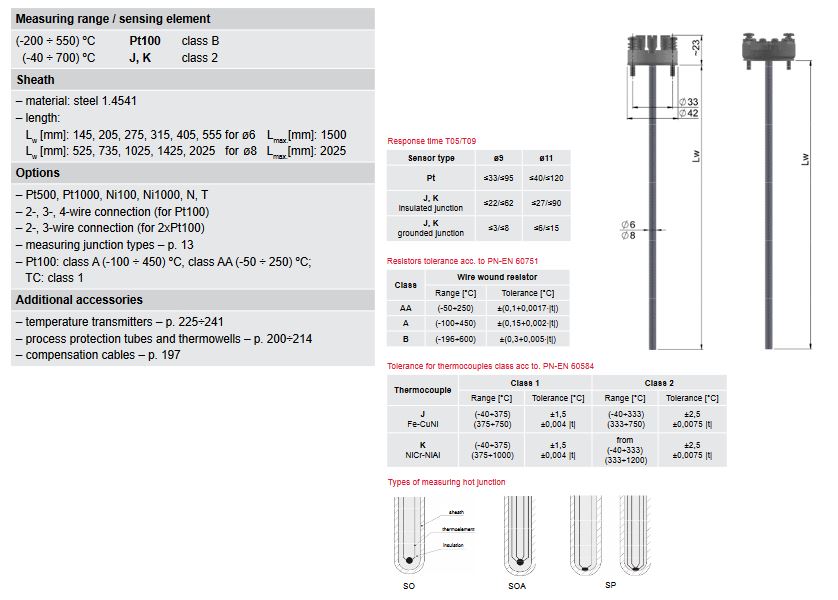

Standard Measuring Insert (Example)

techdescriptionstandardinsert

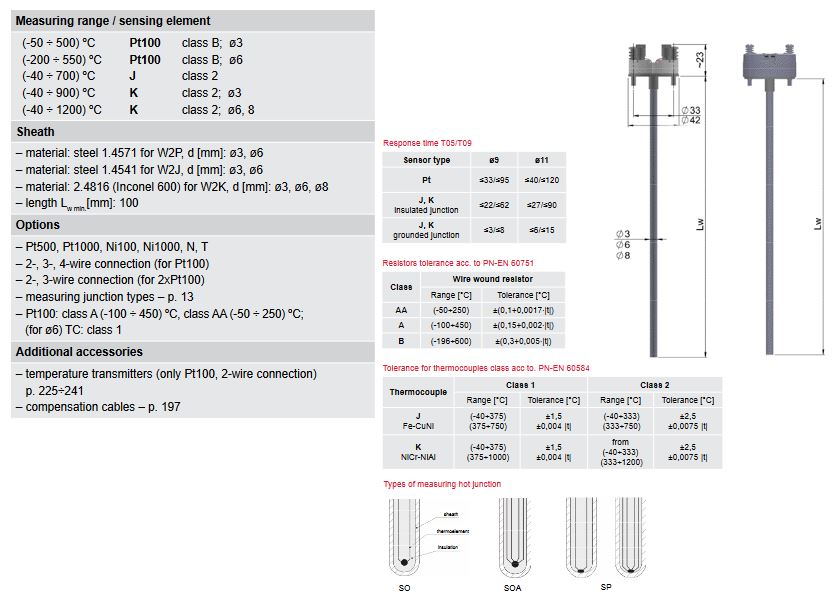

Mineral Insulated Insert (Example)

technicaldescriptionmineralinsulatedinsert

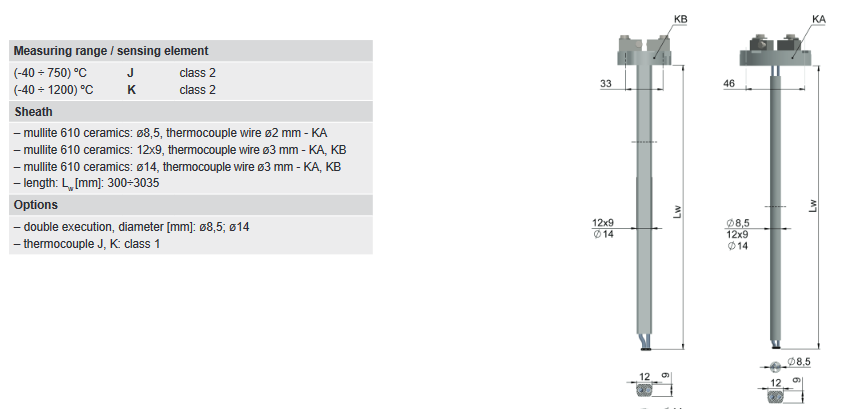

Ceramic Insert (Example)

technicaldescriptionceramic
