Density and Concentration Meter DIMF

Description

Operating Principle

The DIMF series density/concentration meter is based on the oscillating element principle. The fluid to be measured flows through the oscillating element (a tuning fork for Type 1.3, an oscillating tube for type 2.0) that is excited electro-magnetically and will oscillate at its natural frequency. Changes in the density of the fluid lead to changes in the natural frequency. These frequency changes will be picked up by the electronic transducer and converted into a signal proportional to density or concentration

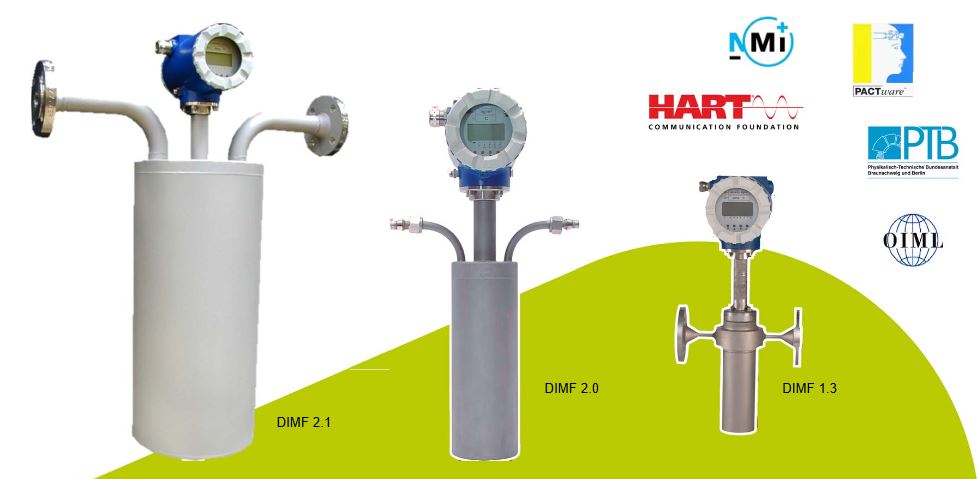

DIMF 1.3 Hollow tuning fork; Measurement of almost all pumpable non-aggressive liquids or liquid mixtures, especially hydrocarbons – for custody transfer applications
DIMF 2.0 / 2.1 Vibrating element in the form of a Tuning fork bent tube; for chemicals and aggressive media

Applications

Continuous monitoring of density, mass flow measurement, fiscal measurements, quality control, monitoring of waste water, product recognition, dosing, injection or blending of additives, control of chemical reactions, measurement of concentrations, monitoring and control of distillation, filtration, sedimentation, mixing or fermentation processes, process control, measurement of solid percentages in liquids, measurement of foams and suspensions, Beverage, °Brix, °Plato, etc.

Characteristics

Special Features

Technical data

Measuring Range
