Mobile Pressure Calibrator with Compressor

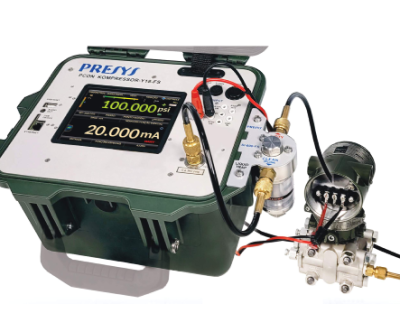

The Presys PCON Compressor Y18 Field Automatic Pressure Calibrator provides a complete solution for test and calibration of pressure gauges, transmitters and pressure switches. Automatic tasks can be easily created and executed to issue a final calibration report. It communicates and integrates easily with your existing application or your CMMS computerized maintenance management system.

User-friendly Interface:

With an easy, clear and intuitive interface, available in different languages, you will be ready to do your first calibration after a few minutes

Inputs:

The PCON-Y18 is equipped with an internal high-performance calibrator to read inputs signals such as mA,mV, V, RTD and pressure switches as well as HART digital signal. You don’t need another extra calibrator to read the electrical signals in order to perform the automatic calibration of your pressure transmitters or pressure switches.

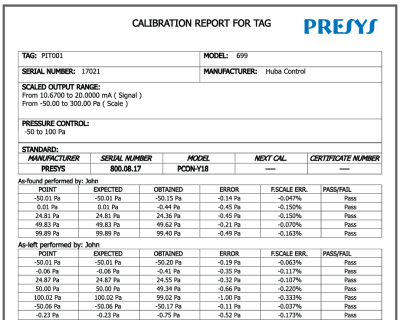

Automatic tasks can be easily created and executed to issue a final calibration report.

Features

• 5.7″ Touch Screen Color Display. Dual Core 1 GHz processor and Flash memory of 16 GB.
• Easy Labview interface with the WebApi Commands.
• Ethernet, Wi-Fi via USB/Ethernet router adapter, Serial USB with SCPI protocol.
• Integrated WebServer, client-server technology to pick-up tasks on remote server.
• Host/Device USB port.

• HART® Communication standard.
• Pressure switch automatic testing.
• Input Current: -1 to 24.5 mA, ± 0.01% FS.

• Transmitter Power Supply: 24 Vdc regulated.
• Leak test.
• Temperature compensated accuracy from 0°C to 50°C.
• User selectable pressure unit: Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH₂O@4°C, mmH₂O@4°C, cmH₂O@4°C, mH₂O@4°C, mmH₂O@20°C, cmH₂O@20°C, mH₂O@20°C, kg/m², kg/cm², mtorr, torr, atm, lb/ft².
• Easy Labview interface with the WebApi Commands.
• Control speed: 20 s (for 10 % FS pressure increase in a 50 ml test volume).
• Integrated electric pump for positive and negative pressure generation.
