Magnetic Level Indicator for Liquids

Ensim ELG magnetic by-pass level indicators measure the liquid level by a float sensor with a magnet that turns the flaps on an indicating rail (top, bottom or side assembly).

• clear visual monitoring and control

• easy installation and maintenance

• No electrical power needed.

• Versions for high pressure (100 bar), temperature (350°C), aggressive media (PTFE lining)

• Different transmitter and limit switch alarm options

Working Principle:
Liquid levels are the same in the main body of tank and level indicator. The movement of the gravity specific float will turn the 2 color flaps of the indicator rail to indicate the level.

Application Fields:

• Wastewater systems
• Chemical tanks for aggressive, corrosive media,
• Oil tanks, Oil boilers, Fuel oil / Gasoline / LPG tanks
• Natural gas pressure reduction system
• Steam boilers, Hot water boilers
• High pressure and temperature tanks

Advantages:

• Clear visual monitoring and control
• Easy installation and maintenance
• Material options, (SS, Titanium, PVC)

• Output options for monitoring and alarm

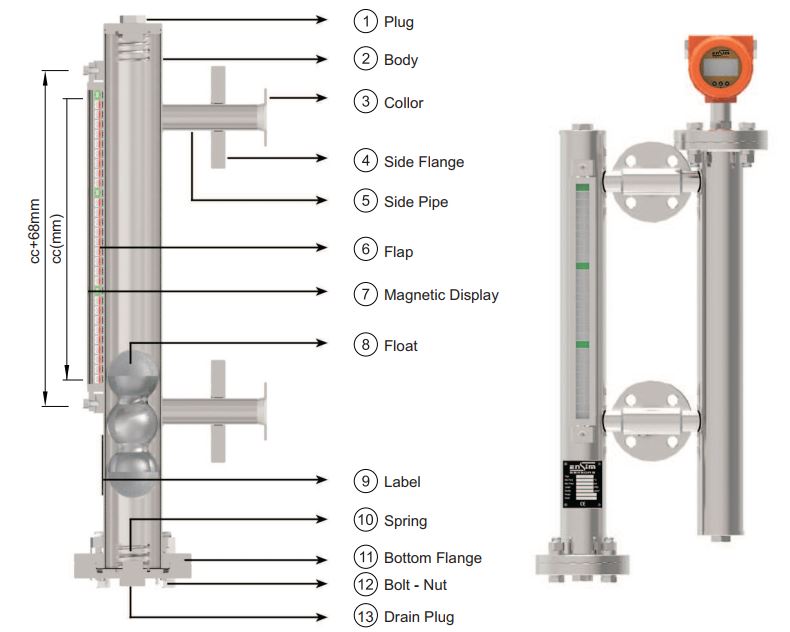

Product details
