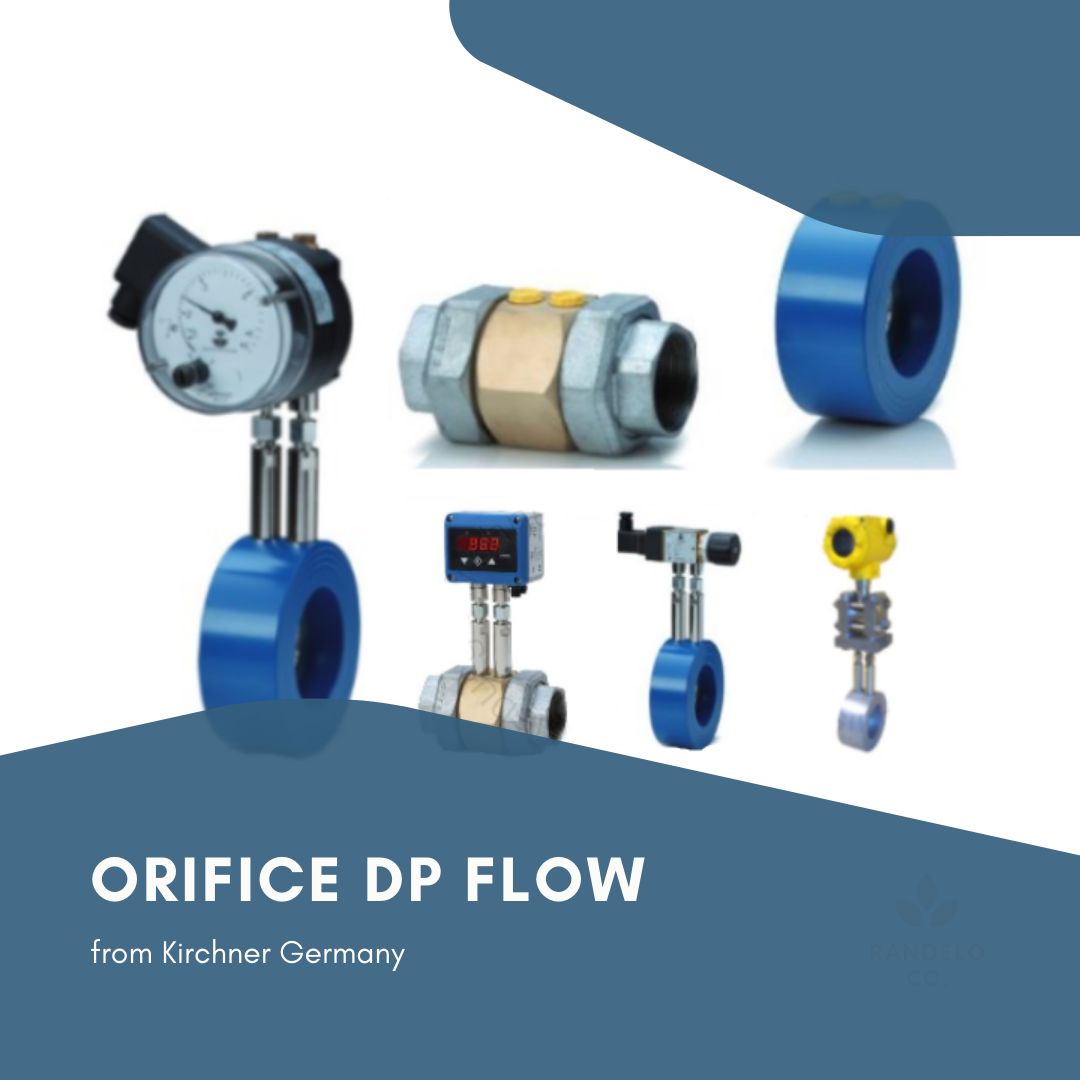

Differential Pressure Flowmeter with Orifice

DP Orifice Plate Flowmeters from Kirchner Germany are manufactured with a wide variety of nominal widths for water, air, transparent and non-transparent liquids and gases and non-conductive fluids (mineral oils, demineralised water).

• Simple operation, no moving parts, wear-free
• Horizontal and vertical installation – between flanges – int. or ext. threads – pipe union
• Pipe size from DN 40 to DN 200
• Flow range: air 0.5 – 4000 m3/h, water 0.05 – 735 m3/h
• Diff.Pressure: air: 5 – 1000 mbar, water: 100 – 1000 mbar
• Accuracy 2,5% of full-scale range
• Calibration acc. to customer specification

Models:

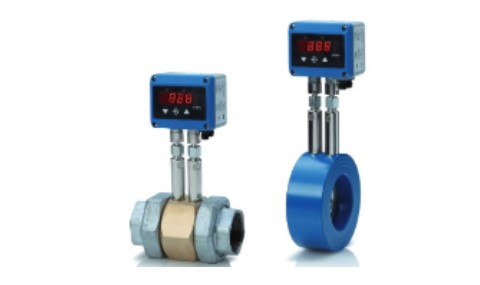

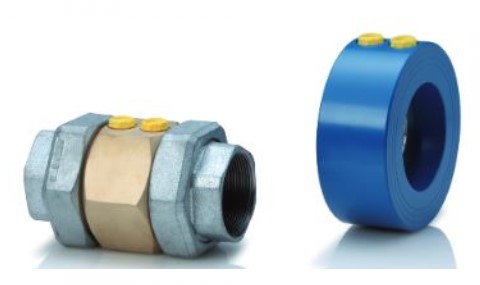

DDM Orifice Plate	DDM DS-11 – DP Gauge	DDM EM – digital LED display in m3/h	DDM DS-31 – Microswitch
can be connected to DP Transm.	opt. with 2 microswitches	4 – 20 mA / 0 – 10 V output	high overload withstand capability

The sprinkler orifice plate SMB series is installed in stationary sprinkler systems and has been approved by the VdS damage prevention.

More on Products

Working Principle

A differential pressure arises at a pipe constriction, which is proportional to the square of the flow rate through the pipe.

The resulting differential pressure can be recorded with a meter and can be directly indicated as flow rate on a scale.
