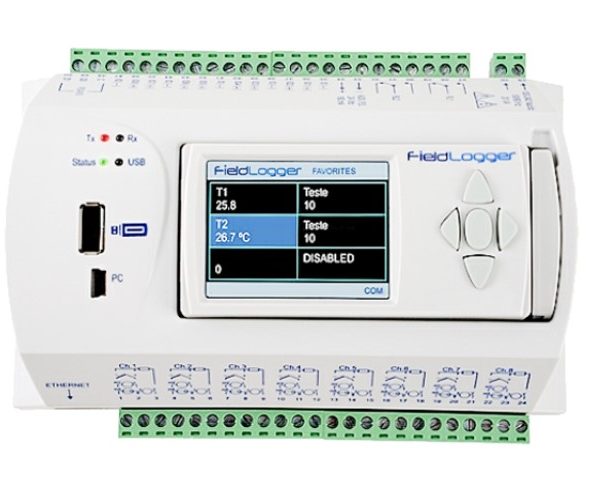

Videographic recorder Field Logger USB
Videographic recorder Field Logger USB
Back to products
Temperature Controller TC & RTD input N1050
Temperature Controller TC & RTD input N1050
Click to enlarge
Limatherm

Temperature Controller TC & RTD input N480D

The most popular Limatherm Sensor temperature controller. It has a universal input suitable for most common thermocouple sensor as well as Pt100. Low or standard 230V power supply can be selected. Up to 3 outputs programmed as alarm or control outputs, including SSR or 4÷20mA (control) output. Two displays: upper red colour presents temperature of process; lower green colour presents set temperature. Black enclosure, anti-reflection coating and clear indication. Degree of protection of front panel IP65. There is a possibility to block the access to specified parameters via software as well as device blocking by means of jumper.

2 People watching this product now!
SKU: LIM N480D Categories: , ,
Description

Description

Characteristic

  • programmable temperature controller
  • 4 digit dual LED display
  • PID control; ON/OFF contro
  • auto-tuning
  • sensor failure detection
  • front panel: IP65



Specification

  • universal input: TC/RTD/NTC
  • output: 3x relay, SSR
  • power supply: 230V AC, 24V DC / AC ±10%
  • dimensions: 48 × 48 × 110; cut-out 45,5 × 45,5 mm
  • additgional features: control output 4÷20mA
About Limatherm
More Information
limathermexproof
limathermmineralinsulated
limathermhightemperature
limathermfoodpharma
cablesensor
Limathermaccessories
limathermapp2chemical
limathermchemical
Limathermhvac

    Products & Features

    Limatherm specializes in industrial temperature measurement and control solutions. Core Products & Services are

    • Temperature Sensors: wired and head sensors, mineral-insulated (sheathed) RTD and Thermocouples
    • Hazardous Area Solutions: intrinsically safe (Exia) and flameproof (Exd)
    • Accredited Laboratory: acc. to ISO/IEC 17025 standard
    • High-Temperature Patent:  up to 2300°C
    • Material Diversity: acid-resistant steel, borosilicate glass, ceramics (e.g., Hexoloy)

    Key Benefits

    • Reliability in Extreme Environments: Suitable for high-temperature and harsh conditions (e.g., molten metal, acidic environments).
    • Adaptability: Suitable for diverse industries such as metallurgy, chemical processing, and food production.
    • Easy Installation: Features like replaceable inserts and flexible mineral-insulated cables reduce maintenance time and cost.
