HSPV
Product Catalog
Flameproof Headsensor
In stock
SKU:
Exd
Flameproof temperature sensor with the head connected to a replaceable measuring insert for liquid and gaseous media. The complete unit is certified as flameproof (explosion proof Exd) for applications in hazardous area. Temperature ranges from -200 up to 1200°C. Different Mounting options The spring-loaded insert ensures an excellent connection with the bottom of the sensor thermowell. Flameproof - Exd approval for dust and gases.
view products
download pdf datasheet
Flap Flowmeter KFS spring loaded
In stock
SKU:
KFS Flap
The KFS spring loaded measuring device operates largely independent of viscosity and is suitable for indicating the flow rate of water, acids, alkaline solutions and gases. Every device is calibrated to customer requirement and fitted with a product-specific scale. The 50 mm thick ring features a half-round plate that is fastened to a rotating spring-loaded spindle. The angle between flap and ring changes according to the rate of flow, and a breakaway-proof magnetic coupling transfers the movement to an external pointer.
download pdf datasheet
Flap Flowmeter KLA
In stock
SKU:
KLA Flap
The KLA Flowmeter uses a flap which is deflected by the flow of the medium. The deflection angle is a direct indication of the flow through the pipe. The flap is gravity-loaded, thus the device can be used for the flow directions left to right, right to left and bottom to top.
In the variant KLA-GS the medium be measured is directly visible through a glass in the flow indication unit.
download pdf datasheet
Float Level Switch ELS
In stock
SKU:
ELS
ELS Level sensors are used for controlling level of a tank.
Different kinds materials and housing connection types are available.
download pdf datasheet
Float Level Switch EX proof DxELS
In stock
SKU:
dxELS
DX-ELS ex-proof float level switches are used for tank level control.Different connections and material types are available.
download pdf datasheet
Float Level Transmitter ELStx
In stock
SKU:
ELStx
ELStx Level sensors are used for tank level and control.When magnetic field of magnet within the buoy moving along tube according to liquid level comes up to the reed sensor, it opens or closes the electric circuit. Continuous type serial aligned resistance and reed relays are engaged and disengaged. Such changes of reed sensors and alarm or level information can be assessed through a relay circuit or control device.Precision of reed sensor increases according to lowness of itsplacement range. It is preferred by the users due to the advantages of providing analogue output within the housing. Furthermore, Process control is possible in the field through UDS indicator.
download pdf datasheet
Float Level Transmitter EX proof DxELStx
In stock
SKU:
dxELStx
DX-ELStx level transmitters are used for tank levels and for controls.
The float moves according to the liquid in the pipe. The magnet in the float triggers electrical signals in the reed switch.
download pdf datasheet
Float Switch side-mounted ELB
In stock
SKU:
ELB
ELB level switches (side mounting)are used for measuring and checking level of tank.lt is preferred in food, ship machine, boiler and storage tank applications with its advantages such as resistance to high temperature, long life contact structure, which is operable in each, vertical or horizontal connection -
download pdf datasheet
Float Switch side-mounted Ex proof DXELB
In stock
SKU:
DXELB
DX-ELB level switches are used for measuring and checking level of tank.
lt is preferred in food, ship machine, boiler and storage tank applications
with its advantages such as resistance to high temperature,
long life contact structure, which is operable in each,
vertical or horizontal connection.
download pdf datasheet
Flow Computer UR-06
In stock
SKU:
UR06
The UR-06 is used for the acquisition, display and output of mass and volume flows, including the calculation of net values for standard conditions. The integrated batch function allows the UR06 to acquire batches via external signals and store them in the original document memory. Plug-in modules allow the connection of different sensor systems for the acquisition of mass flow, pressure, temperature or density.
download pdf datasheet
Flow Computer URS-06
In stock
SKU:
URS06
The URS-06 can be used for simple dosing tasks. Pumps and valves can be controlled. Operation is via a 3.5 inch touch screen with integrated PLC. This allows the operator to make all the necessary entries for dosing.
download pdf datasheet
Flow Computer URS-09
In stock
SKU:
URS09
The URS-09 can be used for more extensive dosing tasks and loading systems. Pumps, valves, etc. can be controlled. Operation is via a 5.7-inch touch screen with integrated PLC. This allows the operator to make all the necessary entries for dosing.
download pdf datasheet

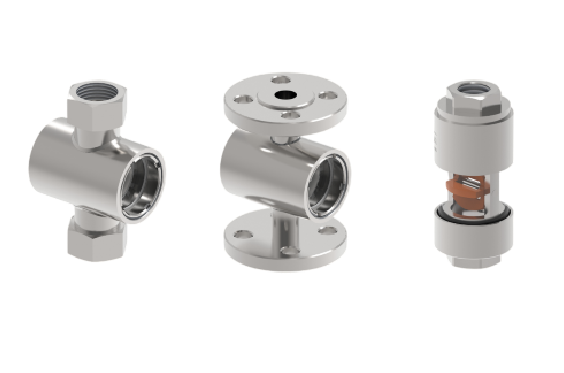

Flow Side Flow Indicator EFD
In stock
SKU:
EFS-1
The Ensim EFD series is a robust and highly reliable sight flow indicator designed for continuous visual flow monitoring of liquids in industrial pipelines. Built with durable materials, it allows operators to safely and easily observe the presence, color, and flow rate of fluids in demanding applications, including the food, beverage, and pharmaceutical industries.
The Ensim EFD indicators typically incorporate different internal mechanisms to make fluid movement easier to spot:
- Flapper Style: Features a hinged mechanical flap that moves in proportion to the fluid velocity; ideal for transparent liquids.
- Rotary/Impeller Style: Uses an internal spinning wheel or rotor driven by the stream, which is perfect for low-flow tracking or checking line movement from a distance.
- Drip Tube Style: Built for vertical, downward process lines to track lower flow volumes or dripping fluids.
Flow Switch EFS 1/2″ BSP
In stock
SKU:
EFS swirl 11/12/13
EFS is used in order to check safely whether there is flow or not by detecting movement of liquids inside the pipe. It provides information about flow with high reliability without spending energy in cooling water or lubricating oil circuits, in the devices such as flash heater, central heating boiler and heater - 1/2" BSP, vertical assembly only
download pdf datasheet
Flow Switch ex proof Dx-EFS
In stock
SKU:
Dx-EFSs
The DX-EFSs high precision flowswitch from Ensim detects flow or no flow of water, lubricating oils, gases and aggressive media inside a pipe without the need of cooling the liquid:
download pdf datasheet
Flow Switch Fire EFS
In stock
SKU:
EFS Fire
EFS is used in order to check whether there is flow or not inside of pipe.
In order to secure electrical equipmentÂ’s safety and return malfunction signal;
flow switches are useful as they are providing open/close switches regarding
the flow. Can be used with variety of liquids if not corrosive. Time delay
is available with the help of a hand wheel while adjustment screw is set by
default before delivery. Users can change according to their applications.
of non-corrosive liquids.
download pdf datasheet
