intrinsically safe Headsensor

Explosion proof temperature sensor with a replaceable measuring insert and connection head for liquid and gaseous media. The complete unit is certified as intrinsically safe, (Exia) for applications in hazardous area. Temperature ranges from -200 up to 1200°C. Different Mounting options. The spring-loaded insert ensures an excellent connection with the bottom of the sensor thermowell.

view products
download pdf datasheet

1 People watching this product now!

Description
About Limatherm

Description

Customizable product selection:

Temperature range
sensing element
connection heads
local display
material
stem length, diameter

Process Connection Types

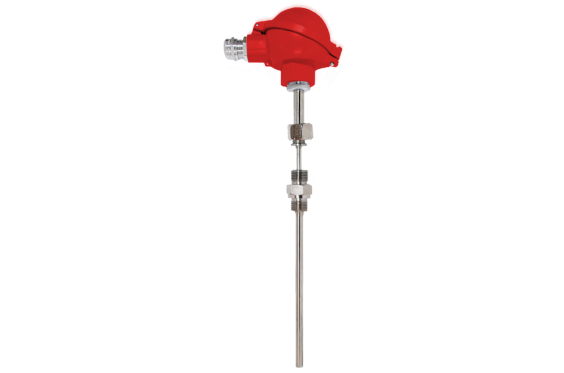

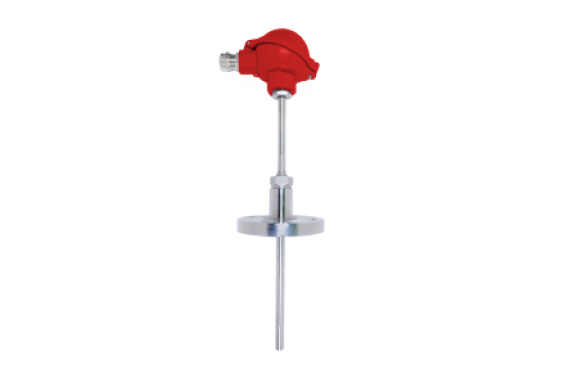

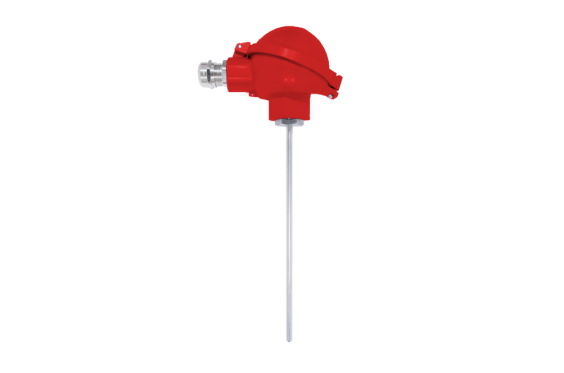

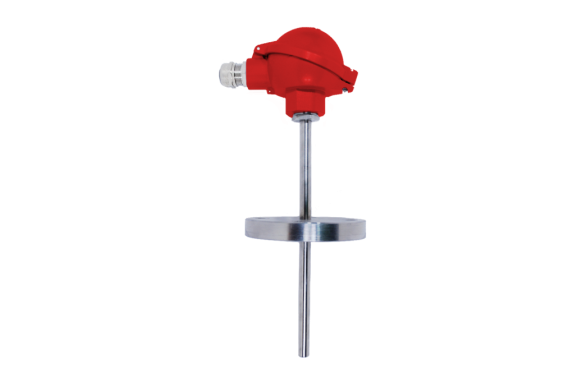

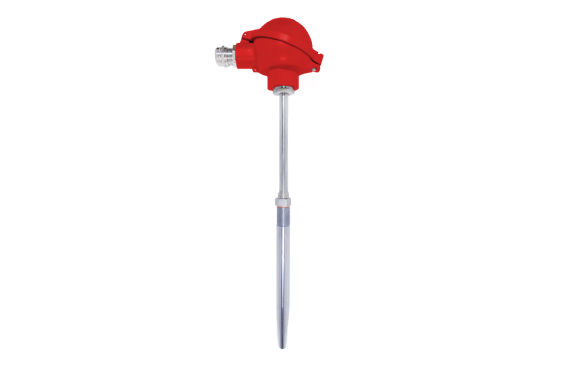

standard M20x1.5, G1/2	flange	thermowell welding	drilled thermowell w flange	drilled thermowell w thread

Connection Head Types – extrinsically safe

	– body and cover material: aluminium alloy; <6% Mg – coating: polyester lacquer – equipped with inner and outer ground clamp – operating temperature: -40÷100ºC – height: approx. 83 mm – protection tube entry: M24x1,5 – cable gland: M20x1,5 (standard without cable gland) – Certificate: FTZU 03 ATEX 0073 U		– body and cover material: aluminium alloy; <6% Mg – coating: polyester lacquer – equipped with inner and outer ground clamp – operating temperature: -40÷100ºC – height: approx. 83 mm – protection tube entry: M24x1,5 – cable gland: M20x1,5 (standard without cable gland) – Certificate: FTZU 03 ATEX 0264 U
	– body and cover material: aluminium alloy; <6% Mg – coating: polyester lacquer – equipped with inner and outer ground clamp – high cover for transmitter mounting – operating temperature: -40÷100ºC – height: approx. 114 mm – protection tube entry: M24x1,5 – cable gland: M20x1,5 (standard without cable gland) – Certificate: FTZU 03 ATEX 0073 U		– body and cover material: aluminium alloy; <6% Mg – coating: polyester lacquer – equipped with inner and outer ground clamp – operating temperature: -40÷100ºC – height: approx. 114 mm – protection tube entry: M24x1,5 – 2 cable glands: M20x1,5 (standard without cable gland) – Certificate: FTZU 03 ATEX 0264 U

stainless steel connection heads available

About Limatherm

Products & Features

Limatherm specializes in industrial temperature measurement and control solutions. Core Products & Services are

Temperature Sensors: wired and head sensors, mineral-insulated (sheathed) RTD and Thermocouples
Hazardous Area Solutions: intrinsically safe (Exia) and flameproof (Exd)
Accredited Laboratory: acc. to ISO/IEC 17025 standard
High-Temperature Patent: up to 2300°C
Material Diversity: acid-resistant steel, borosilicate glass, ceramics (e.g., Hexoloy)

Key Benefits

Reliability in Extreme Environments: Suitable for high-temperature and harsh conditions (e.g., molten metal, acidic environments).
Adaptability: Suitable for diverse industries such as metallurgy, chemical processing, and food production.
Easy Installation: Features like replaceable inserts and flexible mineral-insulated cables reduce maintenance time and cost.
